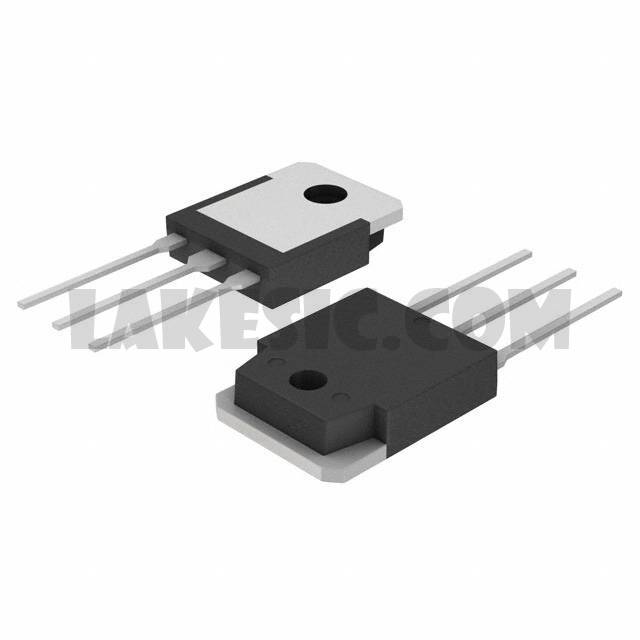

GPI040A060MN-FD

Part NumberGPI040A060MN-FD

ManufacturerGlobal Power Technologies Group

DescriptionIGBT 600V 80A 231W TO3PN

DatasheetGPI040A060MN-FD

Package / CaseTO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench Field Stop 600V 80A 231W Through Hole TO-3PN

To learn about the specification of GPI040A060MN-FD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GPI040A060MN-FD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GPI040A060MN-FD.
We are offering GPI040A060MN-FD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GPI040A060MN-FD - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

GPI040A060MN-FD

Standard Package

Manufacturer

Global Power Technologies Group

Series

Packaging

Tube

Part Status

Active

IGBT Type

Trench Field Stop

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

80A

Current - Collector Pulsed (Icm)

120A

Vce(on) (Max) @ Vge, Ic

2.3V @ 15V, 40A

Power - Max

231W

Switching Energy

1.46mJ (on), 540µJ (off)

Input Type

Standard

Gate Charge

173nC

Td (on/off) @ 25°C

35ns/85ns

Test Condition

400V, 40A, 5Ohm, 15V

Reverse Recovery Time (trr)

60ns

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-3

Supplier Device Package

TO-3PN
