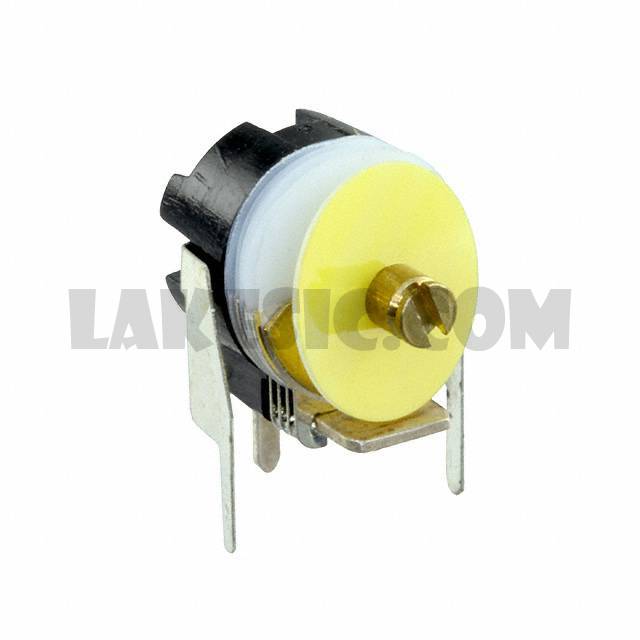

Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	1
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	6 ~ 60pF
Adjustment Type	Side
Voltage - Rated	100V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.449" L x 0.402" W (11.40mm x 10.20mm)
Height - Seated (Max)	0.433" (11.00mm)
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Features	General Purpose

GXE3R511	Sprague-Goodman, 1 ~ 3.5pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GXA9R002	Sprague-Goodman, 2 ~ 9pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYC20004	Sprague-Goodman, 3 ~ 20pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GZD10100	Sprague-Goodman, 9 ~ 100pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GZA30000	Sprague-Goodman, 2.5 ~ 30pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA22000	Sprague-Goodman, 2.2 ~ 22pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYC65000	Sprague-Goodman, 4.5 ~ 65pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYD40000	Sprague-Goodman, 3 ~ 40pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GXD60000	Sprague-Goodman, 6 ~ 60pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GYC20000	Sprague-Goodman, 3 ~ 20pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYA36000	Sprague-Goodman, 3 ~ 36pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXD13000	Sprague-Goodman, 2 ~ 13pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View

GXD60000

Part NumberGXD60000
