Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	100
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	1.5 ~ 5pF
Adjustment Type	Top and Bottom
Voltage - Rated	200V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max)	0.402" (10.20mm)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Features	General Purpose

GXE18002	Sprague-Goodman, 2.6 ~ 18pF Trimmer Capacitor 200V Top and Bottom Through Hole, FILMTRIM®	View
GZL5R000	Sprague-Goodman, 1.2 ~ 5pF Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
GXE3R501	Sprague-Goodman, 1 ~ 3.5pF Trimmer Capacitor 300V Top and Bottom Through Hole, FILMTRIM®	View
GYA15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GZA30000	Sprague-Goodman, 2.5 ~ 30pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYB15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GYA10000	Sprague-Goodman, 2 ~ 10pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXE27002	Sprague-Goodman, 3.5 ~ 27pF Trimmer Capacitor 200V Top and Bottom Through Hole, FILMTRIM®	View
GYC20004	Sprague-Goodman, 3 ~ 20pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GXA9R002	Sprague-Goodman, 2 ~ 9pF Trimmer Capacitor 100V Top and Bottom Through Hole, FILMTRIM®	View
GYB27000	Sprague-Goodman, 2.3 ~ 27pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View
GYD15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 100V Side Through Hole, FILMTRIM®	View

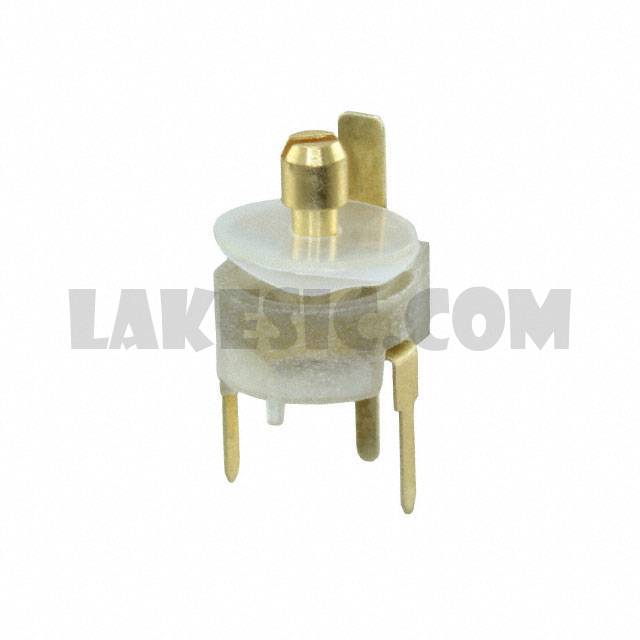

GXE5R000

Part NumberGXE5R000
