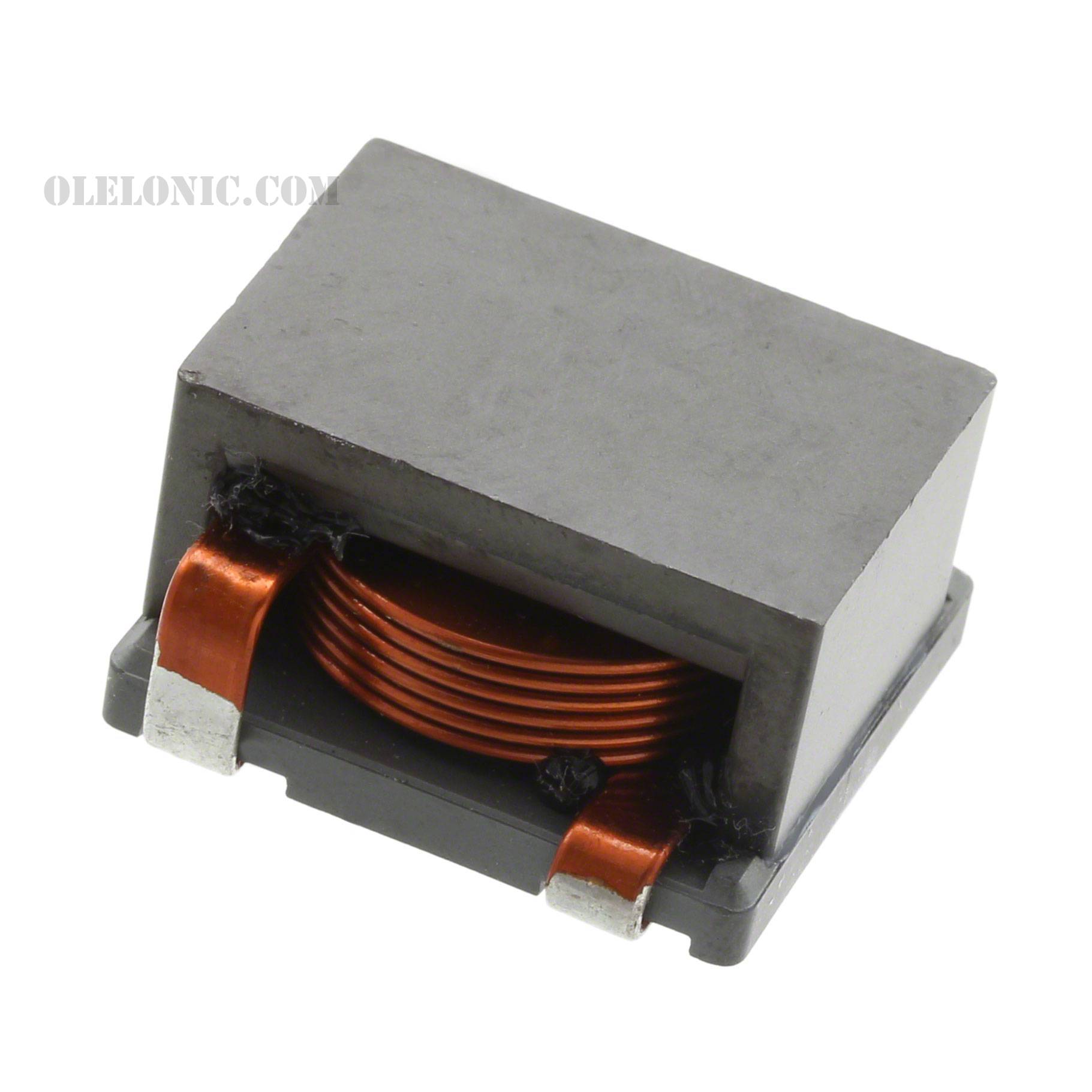

HA65A-251515RLF

Part NumberHA65A-251515RLF

ManufacturerTT Electronics/BI Magnetics

DescriptionFIXED IND 15UH 2.6 MOHM SMD

DatasheetHA65A Model

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µH Unshielded Wirewound Inductor 2.6mOhm Max Nonstandard

To learn about the specification of HA65A-251515RLF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HA65A-251515RLF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HA65A-251515RLF.
We are offering HA65A-251515RLF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HA65A-251515RLF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HA65A Model

Standard Package

135

Manufacturer

TT Electronics/BI Magnetics

Series

HA65A

Packaging

Tray

Part Status

Discontinued at Digi-Key

Type

Wirewound

Material - Core

Inductance

15µH

Tolerance

±10%

Current - Saturation

22A

Shielding

Unshielded

DC Resistance (DCR)

2.6mOhm Max

Q @ Freq

Frequency - Self Resonant

10MHz

Ratings

AEC-Q200

Operating Temperature

-40°C ~ 155°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

1.043" L x 1.043" W (26.50mm x 26.50mm)

Height - Seated (Max)

0.610" (15.50mm)
