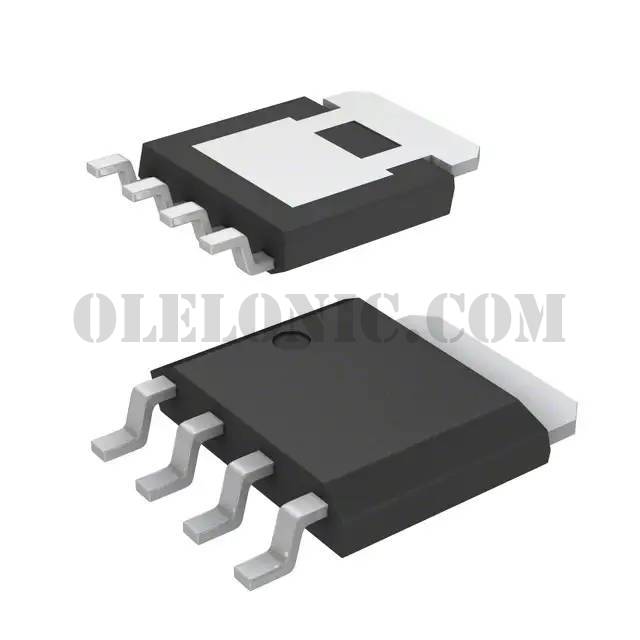

HAT2168H-EL-E

HAT2168H-EL-E

Part NumberHAT2168H-EL-E

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 30V 30A 5LFPAK

DatasheetHAT2168H

Package / CaseSC-100, SOT-669

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 30A (Ta) 15W (Tc) Surface Mount LFPAK

To learn about the specification of HAT2168H-EL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HAT2168H-EL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HAT2168H-EL-E.
We are offering HAT2168H-EL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HAT2168H-EL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	HAT2168H
Standard Package	1
Manufacturer	Renesas Electronics America
Series	-
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	11nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1730pF @ 10V
FET Feature	-
Power Dissipation (Max)	15W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK
Package / Case	SC-100, SOT-669
