HC1-2R3-R
HC1-2R3-R

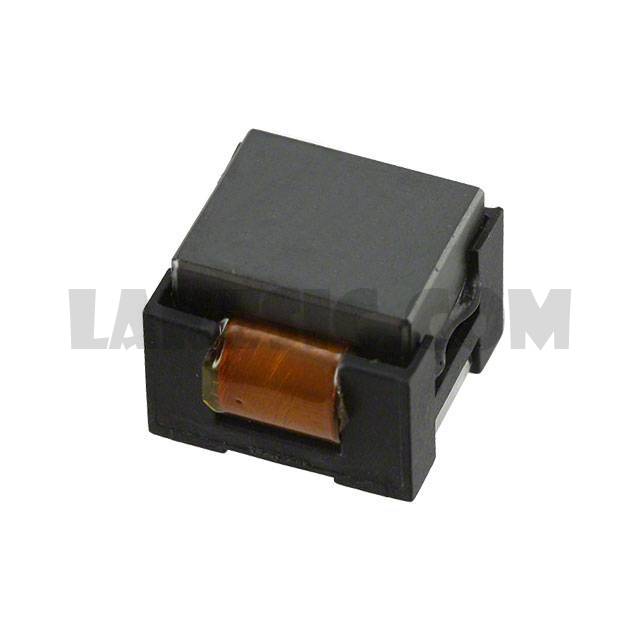

Part Number HC1-2R3-R Description FIXED IND 2.3UH 22.3A 2 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.3µH Unshielded Wirewound Inductor 22.3A 2mOhm Max Nonstandard
To learn about the specification of HC1-2R3-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HC1-2R3-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HC1-2R3-R.
We are offering HC1-2R3-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HC1-2R3-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet HC1 Series Standard Package 1 Manufacturer Eaton - Electronics Division Series HC1 Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 2.3µH Tolerance ±15% Current Rating (Amps) 22.3A Current - Saturation 16.7A Shielding Unshielded DC Resistance (DCR) 2mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 300kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm) Height - Seated (Max) 0.394" (10.00mm)
