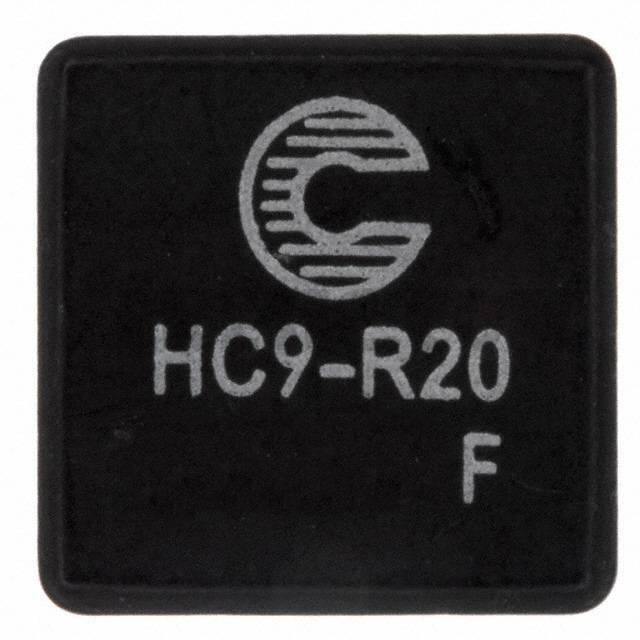

HC9-R20-R

Part NumberHC9-R20-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 200NH 46.7A 0.5 MOHM

DatasheetHC9 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description200nH Unshielded Wirewound Inductor 46.7A 0.5mOhm Max Nonstandard

To learn about the specification of HC9-R20-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HC9-R20-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HC9-R20-R.
We are offering HC9-R20-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HC9-R20-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HC9 Series

Standard Package

450

Manufacturer

Eaton - Electronics Division

Series

HC9

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Iron Powder

Inductance

200nH

Tolerance

±15%

Current Rating (Amps)

46.7A

Current - Saturation

95A

Shielding

Unshielded

DC Resistance (DCR)

0.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 155°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.528" L x 0.516" W (13.40mm x 13.10mm)

Height - Seated (Max)

0.295" (7.50mm)
