HCM1103-220-R
HCM1103-220-R

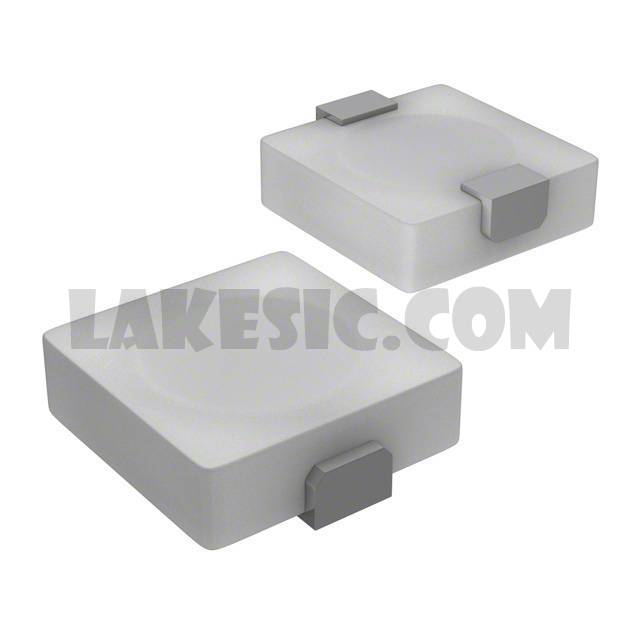

Part Number HCM1103-220-R Description FIXED IND 22UH 3A 99 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Shielded Wirewound Inductor 3A 99mOhm Max Nonstandard
To learn about the specification of HCM1103-220-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCM1103-220-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCM1103-220-R.
We are offering HCM1103-220-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HCM1103-220-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet HCM1103 Series Standard Package 1000 Manufacturer Eaton - Electronics Division Series HCM1103 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Iron Powder Inductance 22µH Tolerance ±20% Current Rating (Amps) 3A Current - Saturation 5A Shielding Shielded DC Resistance (DCR) 99mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm) Height - Seated (Max) 0.118" (3.00mm)
