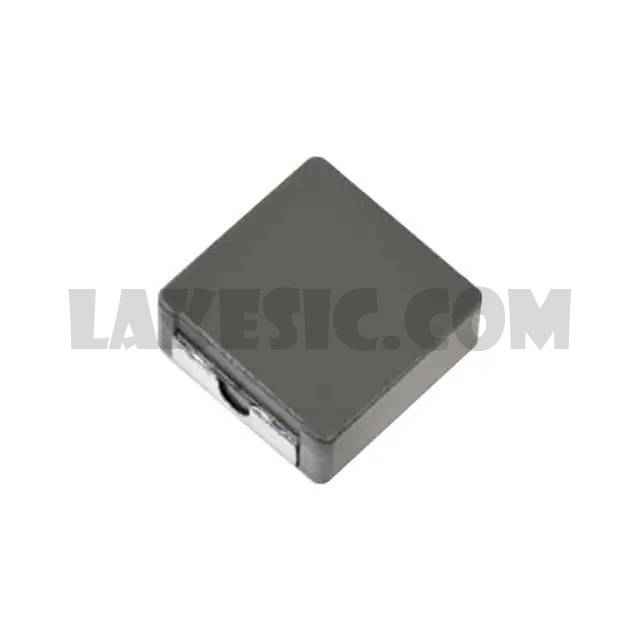

HCM1A1707-150-R

HCM1A1707-150-R

Part NumberHCM1A1707-150-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 15UH 9A 15.5MOHM SMD

DatasheetHCM1A1707 Series

Package / Case2-SMD, J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15µH Shielded Inductor 9A 15.5mOhm Max 2-SMD, J-Lead

To learn about the specification of HCM1A1707-150-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCM1A1707-150-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCM1A1707-150-R.
We are offering HCM1A1707-150-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCM1A1707-150-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HCM1A1707 Series
Standard Package	200
Manufacturer	Eaton - Electronics Division
Series	HCM1A
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	Iron Powder
Inductance	15µH
Tolerance	±20%
Current Rating (Amps)	9A
Current - Saturation	14A
Shielding	Shielded
DC Resistance (DCR)	15.5mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 155°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Supplier Device Package	SMD
Size / Dimension	0.677" L x 0.663" W (17.20mm x 16.85mm)
Height - Seated (Max)	0.276" (7.00mm)
