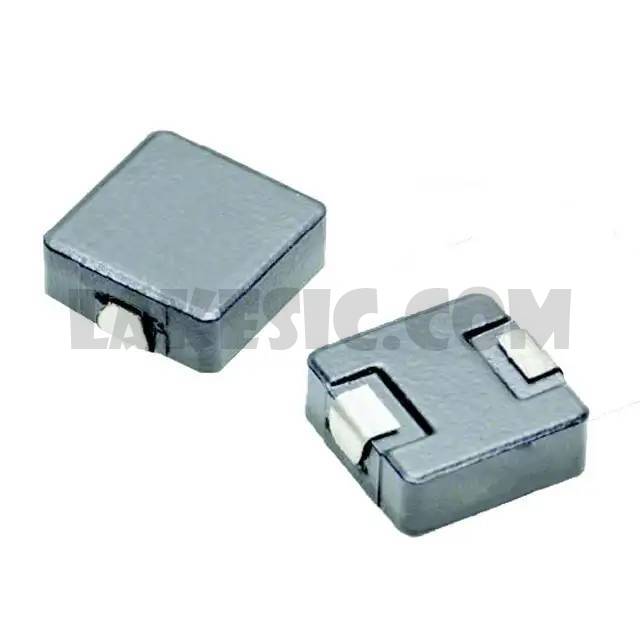

HCMA1305-R22-R

HCMA1305-R22-R

Part NumberHCMA1305-R22-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 220NH 51A 0.72 MOHM

DatasheetHCMA1305 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Shielded Wirewound Inductor 51A 0.72mOhm Max Nonstandard

To learn about the specification of HCMA1305-R22-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCMA1305-R22-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCMA1305-R22-R.
We are offering HCMA1305-R22-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCMA1305-R22-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HCMA1305 Series
Standard Package	400
Manufacturer	Eaton - Electronics Division
Series	HCMA1305
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Iron Powder
Inductance	220nH
Tolerance	±20%
Current Rating (Amps)	51A
Current - Saturation	110A
Shielding	Shielded
DC Resistance (DCR)	0.72mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max)	0.197" (5.00mm)
