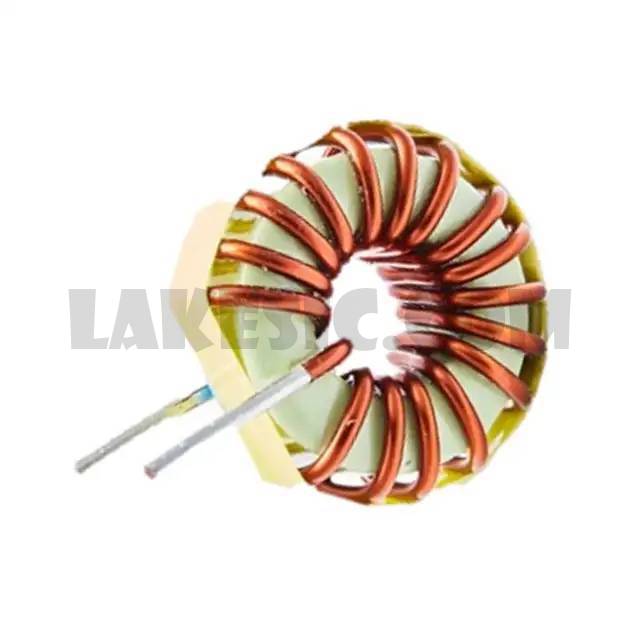

HCTI-390-5.0


HCTI-390-5.0

Part NumberHCTI-390-5.0

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

HCTI-390-5.0 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package47
ManufacturerSignal Transformer
SeriesHCTI
PackagingTray
Part StatusActive
TypeToroidal
Material - Core-
Inductance390µH
Tolerance±15%
Current Rating (Amps)5A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)72mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Inductance Frequency - Test1kHz
Features-
Mounting TypeThrough Hole
Package / CaseRadial, Vertical (Open)
Supplier Device Package-
Size / Dimension1.280" Dia x 0.650" W (32.51mm x 16.51mm)
Height - Seated (Max)-
