Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	HERF1007GA, HERF1008GA
Standard Package	2000
Manufacturer	Taiwan Semiconductor Corporation
Series	Automotive, AEC-Q101
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	1.7V @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	80ns
Current - Reverse Leakage @ Vr	10µA @ 1000V
Capacitance @ Vr, F	40pF @ 4V, 1MHz
Mounting Type	Through Hole

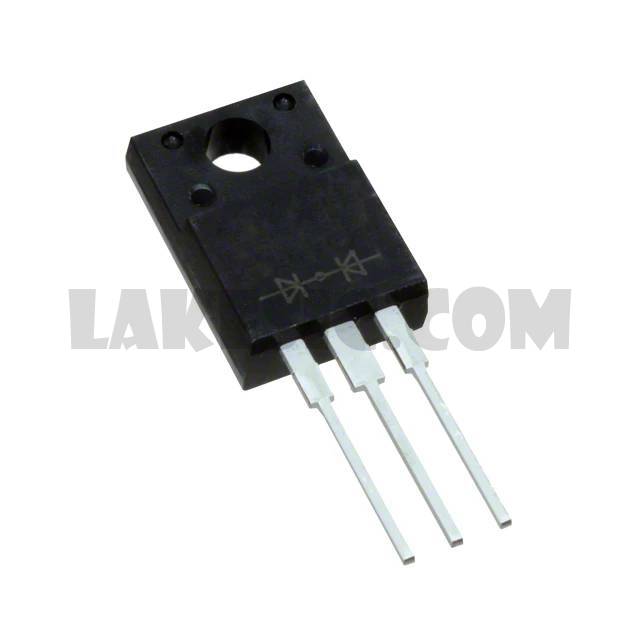

Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
Operating Temperature - Junction	-55°C ~ 150°C
