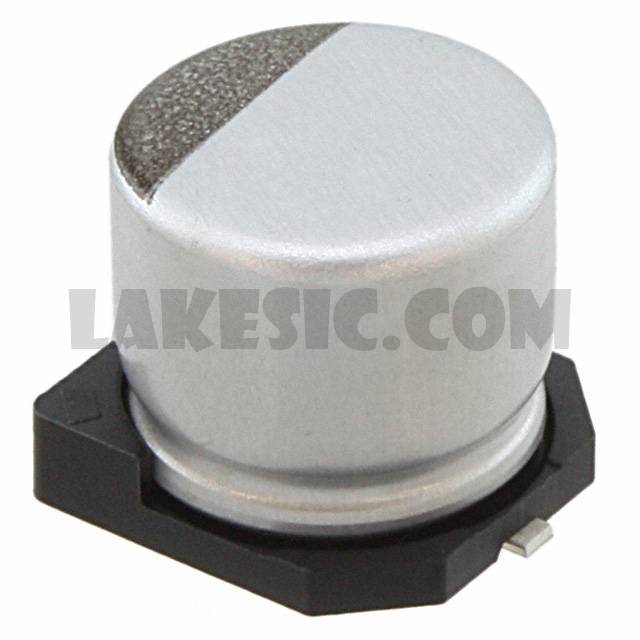

HHXA350ARA470MF61G

Part NumberHHXA350ARA470MF61G

To learn about the specification of HHXA350ARA470MF61G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HHXA350ARA470MF61G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HHXA350ARA470MF61G.
We are offering HHXA350ARA470MF61G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	HXA Series Bulletin
Standard Package	1
Manufacturer	United Chemi-Con
Series	HXA
Packaging	Cut Tape (CT)
Part Status	Active
Type	Hybrid
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	60mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ High Frequency	900mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
