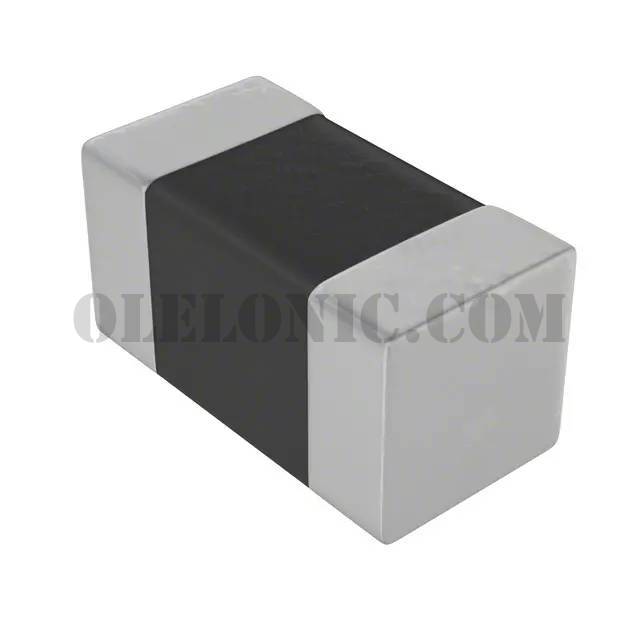

HKQ0603W2N7B-T


HKQ0603W2N7B-T

Part NumberHKQ0603W2N7B-T

Manufacturer

Description

Datasheet

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

HKQ0603W2N7B-T - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTaiyo Yuden
SeriesHK, Q Type
PackagingCut Tape (CT)
Part StatusActive
TypeMultilayer
Material - CoreCeramic
Inductance2.7nH
Tolerance±0.1nH
Current Rating (Amps)510mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)190mOhm Max
Q @ Freq15 @ 500MHz
Frequency - Self Resonant8.5GHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test500MHz
Mounting TypeSurface Mount
Package / Case0201 (0603 Metric)
Supplier Device Package0201 (0603 Metric)
Size / Dimension0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)0.013" (0.33mm)
