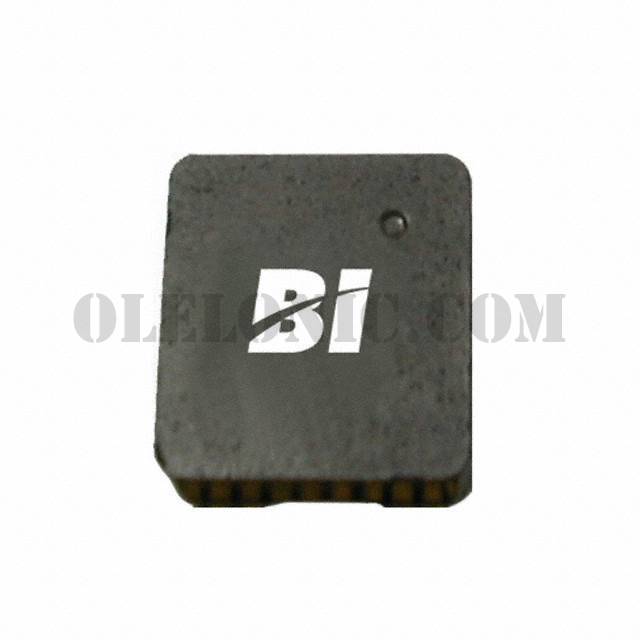

HM72A-063R3LFTR13

Part NumberHM72A-063R3LFTR13

ManufacturerTT Electronics/BI Magnetics

DescriptionFIXED IND 3.3UH 6.6A 28 MOHM SMD

DatasheetHM72A Model

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3µH Unshielded Molded Inductor 6.6A 28mOhm Max Nonstandard

To learn about the specification of HM72A-063R3LFTR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HM72A-063R3LFTR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HM72A-063R3LFTR13.
We are offering HM72A-063R3LFTR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HM72A-063R3LFTR13 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HM72A Model

Standard Package

1000

Manufacturer

TT Electronics/BI Magnetics

Series

HM72A

Packaging

Tape & Reel (TR)

Part Status

Discontinued at Digi-Key

Type

Molded

Material - Core

Inductance

3.3µH

Tolerance

±20%

Current Rating (Amps)

6.6A

Current - Saturation

13.5A

Shielding

Unshielded

DC Resistance (DCR)

28mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.285" L x 0.268" W (7.23mm x 6.80mm)

Height - Seated (Max)

0.118" (3.00mm)
