HMC1164LP5E

Part NumberHMC1164LP5E

ManufacturerAnalog Devices Inc.

DescriptionVCO 5.42GHZ/10.84GHZ 2-13V 5X5MM

DatasheetHMC1164

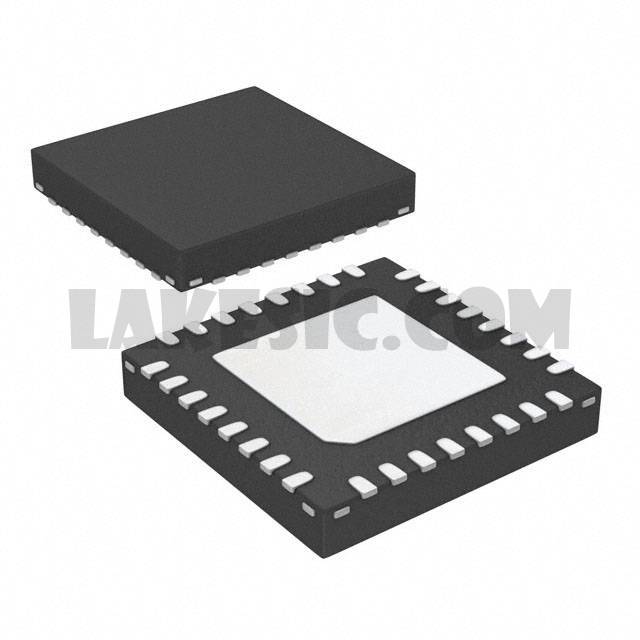

Package / Case32-VFQFN Exposed Pad, CSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.42GHz, 10.84GHz Center Frequency 2V ~ 13V Voltage Controlled Oscillator 8±4 dBm 20 2nd Harmonic, Typ (dBc)

To learn about the specification of HMC1164LP5E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HMC1164LP5E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HMC1164LP5E.
We are offering HMC1164LP5E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HMC1164LP5E - Product Attributes

Categories	Crystals, Oscillators, Resonators / VCOs (Voltage Controlled Oscillators)
Datasheet	HMC1164
Standard Package	1
Manufacturer	Analog Devices Inc.
Series	-
Packaging	Strip
Part Status	Active
Frequency Range	5.19 ~ 5.65GHz, 10.38 ~ 11.30GHz
Frequency - Center	5.42GHz, 10.84GHz
Voltage - Supply	5V
Tuning Voltage (VDC)	2V ~ 13V
2nd Harmonic, Typ (dBc)	20
Icc Max	290mA
Pushing (MHz/V)	8
Power (dBm)	8±4
Phase Noise Typ (dBc/Hz)	-110
Operating Temperature	-40°C ~ 85°C
Package / Case	32-VFQFN Exposed Pad, CSP
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height	0.039" (1.00mm)
Base Part Number	HMC1164
