HN4B01JE(TE85L,F)

Part NumberHN4B01JE(TE85L,F)

ManufacturerToshiba Semiconductor and Storage

DescriptionTRANS NPN/PNP 50V 0.15A ESV PLN

DatasheetHN4B01JE

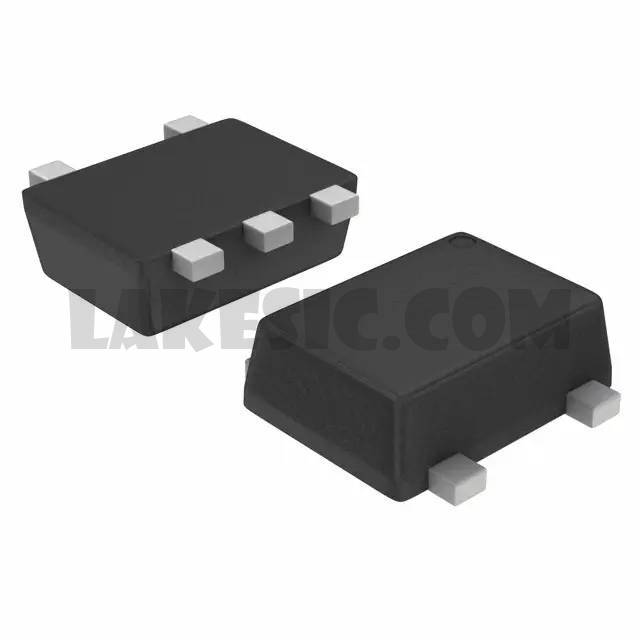

Package / CaseSOT-553

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 50V 150mA 80MHz 100mW Surface Mount ESV

To learn about the specification of HN4B01JE(TE85L,F), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HN4B01JE(TE85L,F) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HN4B01JE(TE85L,F).
We are offering HN4B01JE(TE85L,F) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HN4B01JE(TE85L,F) - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	HN4B01JE
Standard Package	4000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN, PNP (Emitter Coupled)
Current - Collector (Ic) (Max)	150mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	250mV @ 10mA, 100mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 10MA, 100MA
Power - Max	100mW
Frequency - Transition	80MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-553
Supplier Device Package	ESV
