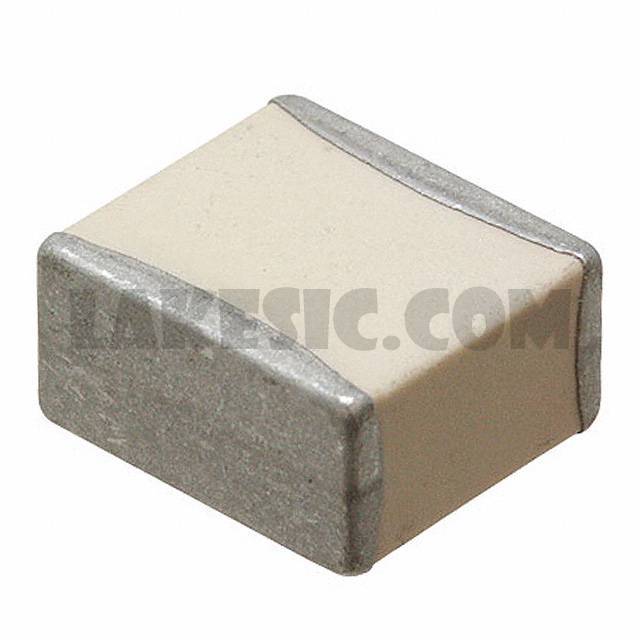

Categories	Capacitors / Ceramic Capacitors
Datasheet	Hi-Q Series
Standard Package	36
Manufacturer	AVX Corporation
Series	Hi-Q®
Packaging	Tray
Part Status	Active
Capacitance	3.9pF
Tolerance	±0.1pF
Voltage - Rated	2500V (2.5kV)
Temperature Coefficient	P90
Operating Temperature	-55°C ~ 125°C
Features	High Q, Low Loss, Ultra Low ESR, High Voltage
Ratings	-
Applications	RF, Microwave, High Frequency
Mounting Type	Surface Mount, MLCC
Package / Case	2325 (5864 Metric)
Size / Dimension	0.230" L x 0.250" W (5.84mm x 6.35mm)
Height - Seated (Max)	-
Thickness (Max)	0.145" (3.68mm)
Lead Spacing	-
Lead Style	-
