Home/Product Catalog/Resistors / Chip Resistor - Surface Mount/  HVC2512T1004JET

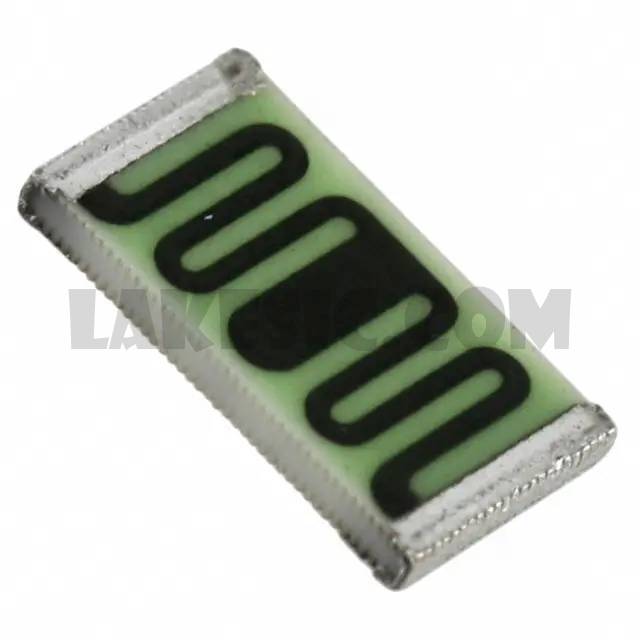

HVC2512T1004JET


HVC2512T1004JET

Part NumberHVC2512T1004JET

Manufacturer

Description

Datasheet

Package / Case2512 (6432 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

HVC2512T1004JET - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package500
ManufacturerOhmite
SeriesHVC
PackagingTape & Reel (TR)
Part StatusActive
Resistance1 MOhms
Tolerance±5%
Power (Watts)1W
CompositionThick Film
FeaturesHigh Voltage
Temperature Coefficient±100ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case2512 (6432 Metric)
Supplier Device Package2512
Size / Dimension0.248" L x 0.138" W (6.30mm x 3.50mm)
Height - Seated (Max)0.022" (0.55mm)
Number of Terminations2
Failure Rate-

HVC2512T1004JET - Related Products

More >>
HVC0805T2504JET Ohmite, 2.5 MOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) High Voltage Thick Film, HVC View
HVC0402T5005JET Ohmite, 50 MOhms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) High Voltage Thick Film, HVC View
HVCB0805KDL1G00 Stackpole Electronics Inc, 1 GOhms ±10% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) High Voltage, Pulse Withstanding Thick Film, HVC View
HVCB0603FDD20M0 Stackpole Electronics Inc, 20 MOhms ±1% 0.06W Chip Resistor 0603 (1608 Metric) High Voltage, Pulse Withstanding Thick Film, HVC View
HVCB2512FDD20M0 Stackpole Electronics Inc, 20 MOhms ±1% 2W Chip Resistor 2512 (6432 Metric) High Voltage, Pulse Withstanding Thick Film, HVC View
HVC0805Z1008KET Ohmite, 10 GOhms ±10% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) High Voltage Thick Film, HVC View
HVC0402T2504JET Ohmite, 2.5 MOhms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) High Voltage Thick Film, HVC View
HVC1206T1005JET Ohmite, 10 MOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) High Voltage Thick Film, HVC View
HVC2512H-100MJ8 Riedon, 100 MOhms ±5% 1W Chip Resistor 2512 (6432 Metric) High Voltage, Non-Magnetic Thick Film, HVC View
HVC4020V5007JET Ohmite, 5 GOhms ±5% 1.5W Chip Resistor Nonstandard High Voltage Thick Film, HVC View
HVCB1206JDD500M Stackpole Electronics Inc, 500 MOhms ±5% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) High Voltage, Pulse Withstanding Thick Film, HVC View
HVCB0805FDC15M0 Stackpole Electronics Inc, 15 MOhms ±1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) High Voltage, Pulse Withstanding Thick Film, HVC View
