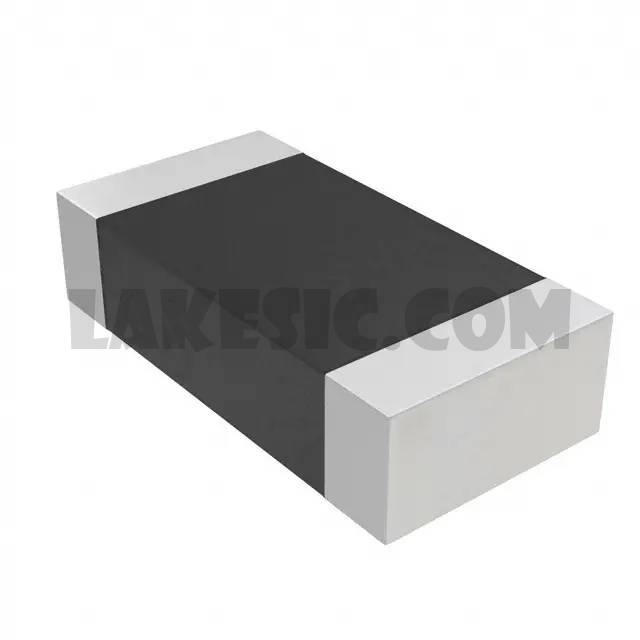

HVCB0603JDD1G00

Part NumberHVCB0603JDD1G00

ManufacturerStackpole Electronics Inc

DescriptionRES 1G OHM 5% 0.06W 0603

DatasheetHVC Series Datasheet

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1 GOhms ±5% 0.06W Chip Resistor 0603 (1608 Metric) High Voltage, Pulse Withstanding Thick Film

To learn about the specification of HVCB0603JDD1G00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HVCB0603JDD1G00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HVCB0603JDD1G00.
We are offering HVCB0603JDD1G00 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HVCB0603JDD1G00 - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	HVC Series Datasheet
Standard Package	1
Manufacturer	Stackpole Electronics Inc
Series	HVC
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	1 GOhms
Tolerance	±5%
Power (Watts)	0.06W
Composition	Thick Film
Features	High Voltage, Pulse Withstanding
Temperature Coefficient	±100ppm/°C
Operating Temperature	-55°C ~ 150°C
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.79mm)
Height - Seated (Max)	0.020" (0.51mm)
Number of Terminations	2
Failure Rate	-
