IAUS300N08S5N012ATMA1


IAUS300N08S5N012ATMA1

Part NumberIAUS300N08S5N012ATMA1

Manufacturer

Description

Datasheet

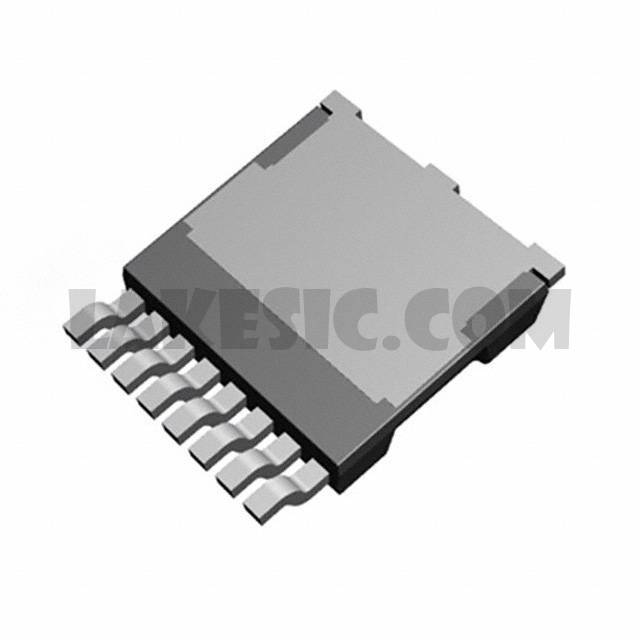

Package / Case8-PowerSMD, Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IAUS300N08S5N012ATMA1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerInfineon Technologies
SeriesAutomotive, AEC-Q101, OptiMOS™
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80V
Current - Continuous Drain (Id) @ 25°C300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id3.8V @ 275µA
Gate Charge (Qg) (Max) @ Vgs231nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds16250pF @ 40V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOG-8-1
Package / Case8-PowerSMD, Gull Wing
