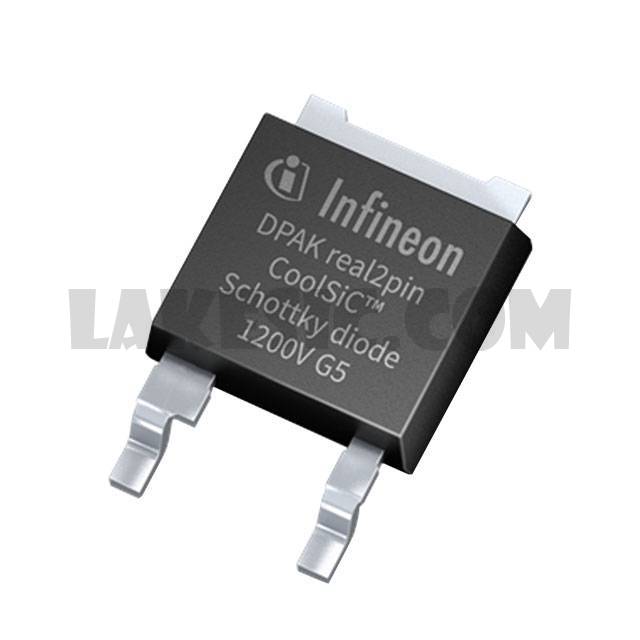

IDM10G120C5XTMA1

Part NumberIDM10G120C5XTMA1

To learn about the specification of IDM10G120C5XTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IDM10G120C5XTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IDM10G120C5XTMA1.
We are offering IDM10G120C5XTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	IDM10G120C5
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolSiC™
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	38A (DC)
Voltage - Forward (Vf) (Max) @ If	1.8V @ 10A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	62µA @ 12V
Capacitance @ Vr, F	29pF @ 800V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	PG-TO252-2
Operating Temperature - Junction	-55°C ~ 150°C
