IHLP1616ABERR47M01


IHLP1616ABERR47M01

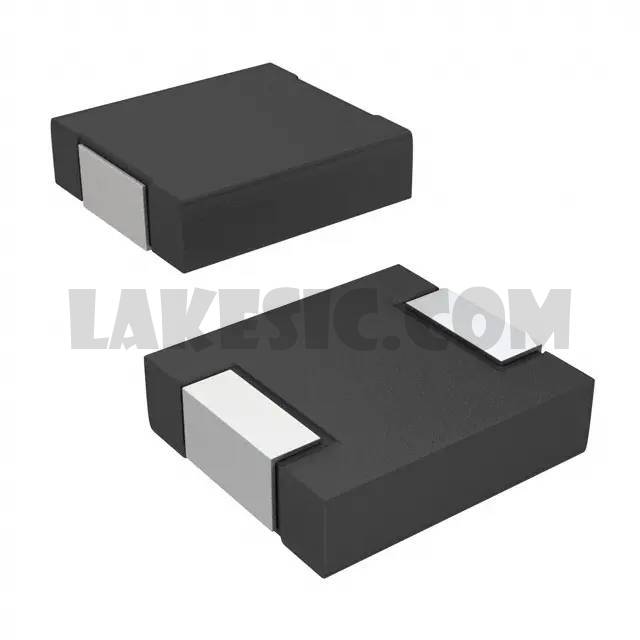

Part NumberIHLP1616ABERR47M01

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IHLP1616ABERR47M01 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerVishay Dale
SeriesIHLP-1616AB-01
PackagingCut Tape (CT)
Part StatusActive
TypeMolded
Material - Core-
Inductance470nH
Tolerance±20%
Current Rating (Amps)5A
Current - Saturation13A
ShieldingShielded
DC Resistance (DCR)22mOhm Max
Q @ Freq-
Frequency - Self Resonant101MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)0.047" (1.20mm)
