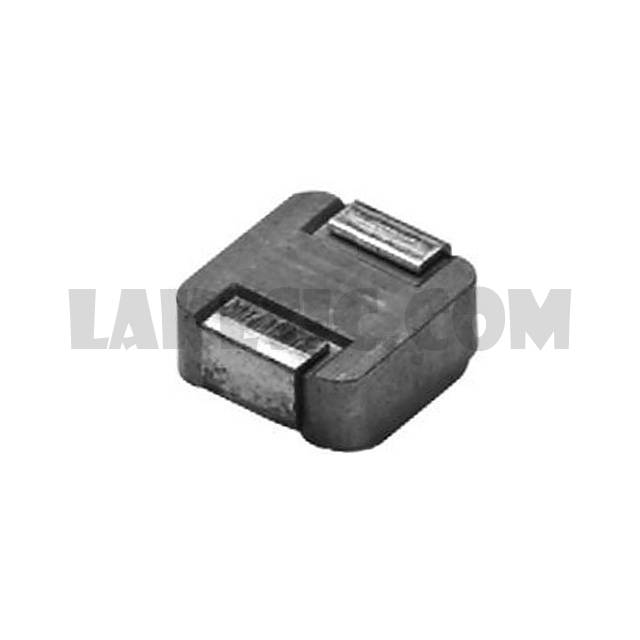

IHLP1616BZERR47M0H


IHLP1616BZERR47M0H

Part NumberIHLP1616BZERR47M0H

Manufacturer

Description

Datasheet

Package / CaseNonstandard, 2 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IHLP1616BZERR47M0H - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package4000
ManufacturerVishay Dale
SeriesIHLP-1616BZ-0H
PackagingTape & Reel (TR)
Part StatusActive
Type-
Material - CoreFerrite
Inductance470nH
Tolerance±20%
Current Rating (Amps)8.5A
Current - Saturation13.1A
ShieldingShielded
DC Resistance (DCR)14.1mOhm Max
Q @ Freq-
Frequency - Self Resonant145MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard, 2 Lead
Supplier Device Package-
Size / Dimension0.160" L x 0.160" W (4.06mm x 4.06mm)
Height - Seated (Max)0.079" (2.00mm)
