IHLP2525CZER100M8A
IHLP2525CZER100M8A

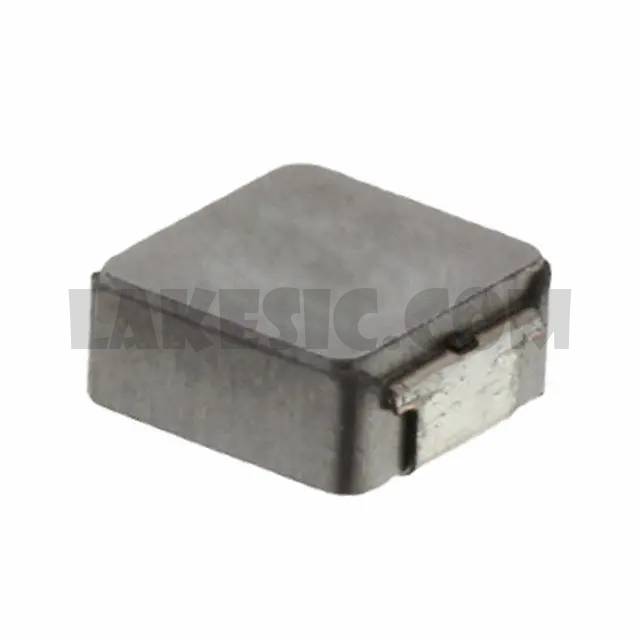

Part Number IHLP2525CZER100M8A
Description FIXED IND 10UH 4A 76.9 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 10µH Shielded Molded Inductor 4A 76.9mOhm Max Nonstandard
To learn about the specification of IHLP2525CZER100M8A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IHLP2525CZER100M8A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IHLP2525CZER100M8A.
We are offering IHLP2525CZER100M8A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IHLP2525CZER100M8A - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet IHLP-2525CZ-8A DataSheet
Standard Package 1
Manufacturer Vishay Dale
Series IHLP-2525CZ-8A
Packaging Cut Tape (CT)
Part Status Active
Type Molded
Material - Core -
Inductance 10µH
Tolerance ±20%
Current Rating (Amps) 4A
Current - Saturation 2.9A
Shielding Shielded
DC Resistance (DCR) 76.9mOhm Max
Q @ Freq -
Frequency - Self Resonant 13.9MHz
Ratings AEC-Q200
Operating Temperature -55°C ~ 180°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max) 0.118" (3.00mm)
