IHLP4040DZER6R8M11
IHLP4040DZER6R8M11
Part Number IHLP4040DZER6R8M11
Description FIXED IND 6.8UH 9A 19.3 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed

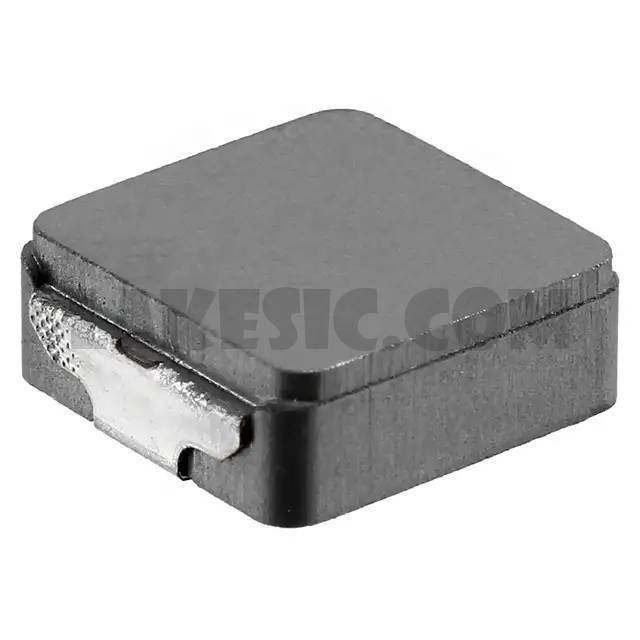

Detailed Description 6.8µH Shielded Molded Inductor 9A 19.3mOhm Max Nonstandard
To learn about the specification of IHLP4040DZER6R8M11, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IHLP4040DZER6R8M11 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IHLP4040DZER6R8M11.
We are offering IHLP4040DZER6R8M11 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IHLP4040DZER6R8M11 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet IHLP4040DZ-11 Datasheet
Standard Package 1
Manufacturer Vishay Dale
Series IHLP-4040DZ-11
Packaging Cut Tape (CT)
Part Status Active
Type Molded
Material - Core -
Inductance 6.8µH
Tolerance ±20%
Current Rating (Amps) 9A
Current - Saturation 7.5A
Shielding Shielded
DC Resistance (DCR) 19.3mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 4040
Size / Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
