Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

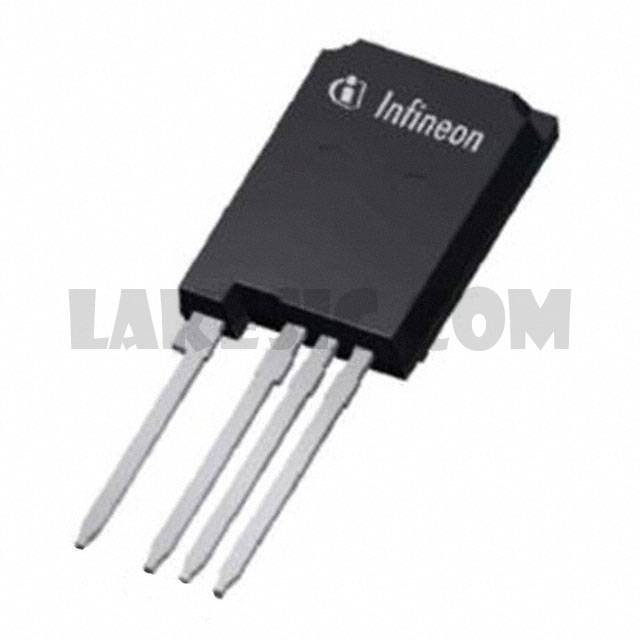

Datasheet	IKY40N120CS6
Standard Package	240
Manufacturer	Infineon Technologies
Series	TrenchStop™
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	80A
Current - Collector Pulsed (Icm)	160A
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 40A
Power - Max	500W
Switching Energy	1.45mJ (on), 1.55mJ (off)
Input Type	Standard
Gate Charge	285nC
Td (on/off) @ 25°C	27ns/315ns
Test Condition	600V, 40A, 9Ohm, 15V
Reverse Recovery Time (trr)	255ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-4
Supplier Device Package	PG-TO247-4-2
