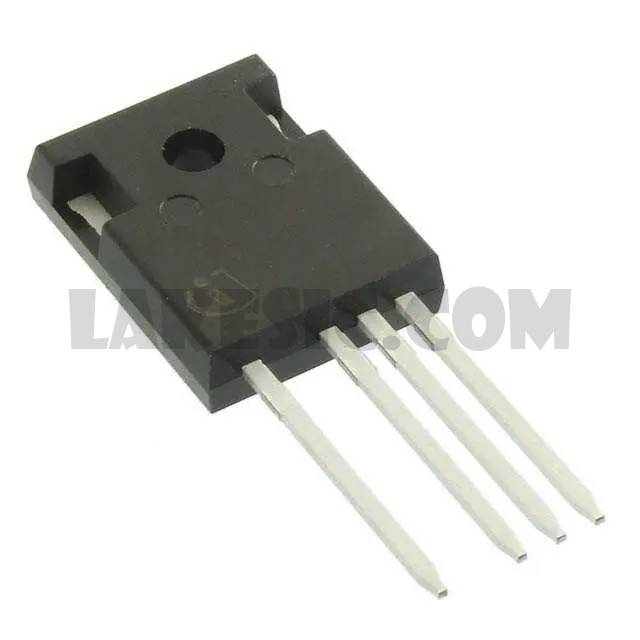

IKZ75N65EL5XKSA1

IKZ75N65EL5XKSA1

Part NumberIKZ75N65EL5XKSA1

ManufacturerInfineon Technologies

DescriptionIGBT 650V 100A TO247-4

DatasheetIKZ75N65EL5

Package / CaseTO-247-4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 650V 100A 536W Surface Mount PG-TO247-4

To learn about the specification of IKZ75N65EL5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKZ75N65EL5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKZ75N65EL5XKSA1.
We are offering IKZ75N65EL5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IKZ75N65EL5XKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IKZ75N65EL5
Standard Package	240
Manufacturer	Infineon Technologies
Series	TrenchStop™ 5
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	100A
Current - Collector Pulsed (Icm)	300A
Vce(on) (Max) @ Vge, Ic	1.35V @ 15V, 75A
Power - Max	536W
Switching Energy	1.57mJ (on), 3.2mJ (off)
Input Type	Standard
Gate Charge	436nC
Td (on/off) @ 25°C	120ns/275ns
Test Condition	400V, 75A, 23Ohm, 15V
Reverse Recovery Time (trr)	59ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-247-4
Supplier Device Package	PG-TO247-4
