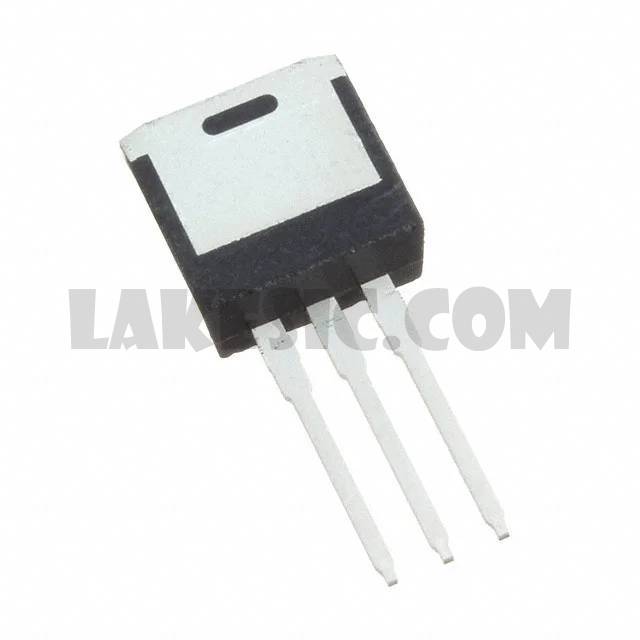

IPI045N10N3GXKSA1

IPI045N10N3GXKSA1

Part NumberIPI045N10N3GXKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 100V 100A TO262-3

DatasheetIPI045N10N3 G

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 100A (Tc) 214W (Tc) Through Hole PG-TO262-3

To learn about the specification of IPI045N10N3GXKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPI045N10N3GXKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPI045N10N3GXKSA1.
We are offering IPI045N10N3GXKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPI045N10N3GXKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPI045N10N3 G
Standard Package	500
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	4.5mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	117nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8410pF @ 50V
FET Feature	-
Power Dissipation (Max)	214W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO262-3
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
