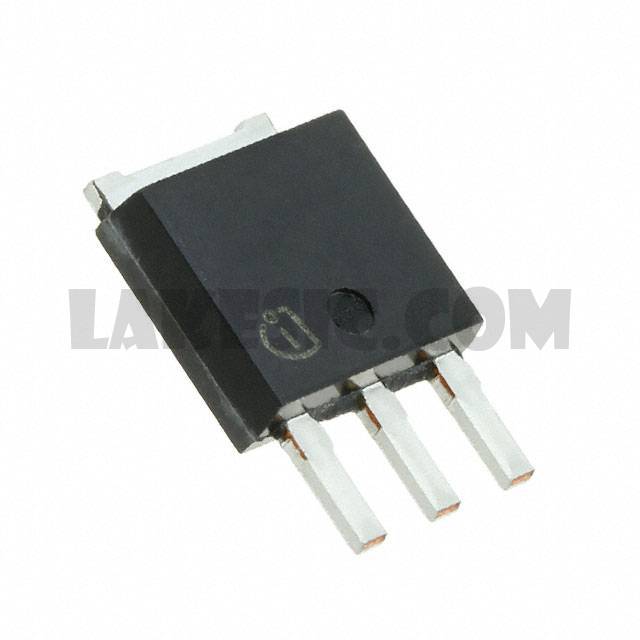

IPS70R2K0CEAKMA1

IPS70R2K0CEAKMA1

Part NumberIPS70R2K0CEAKMA1

ManufacturerInfineon Technologies

DescriptionMOSFET NCH 700V 4A TO251

DatasheetIPS70R2K0CE

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 4A (Tc) 42W (Tc) Through Hole PG-TO251-3

To learn about the specification of IPS70R2K0CEAKMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPS70R2K0CEAKMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPS70R2K0CEAKMA1.
We are offering IPS70R2K0CEAKMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPS70R2K0CEAKMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPS70R2K0CE
Standard Package	75
Manufacturer	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	3.5V @ 70µA
Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	163pF @ 100V
FET Feature	Super Junction
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Stub Leads, IPak
