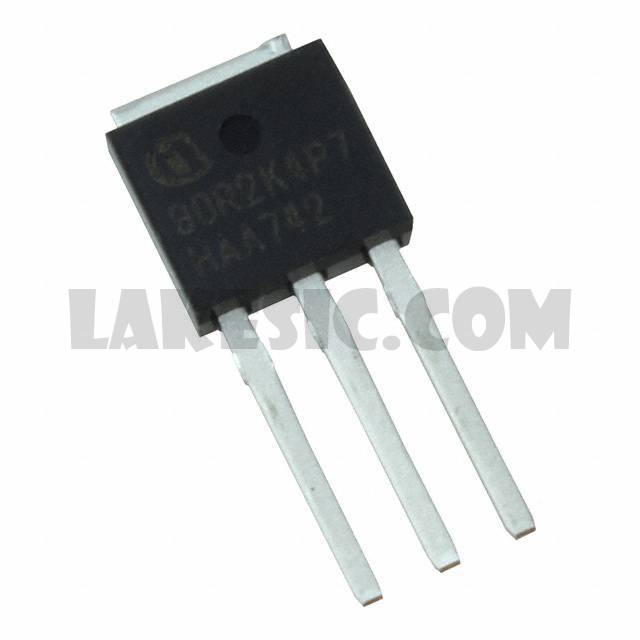

IPU80R2K0P7AKMA1

IPU80R2K0P7AKMA1

Part NumberIPU80R2K0P7AKMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 800V 3A TO251-3

DatasheetIPU80R2K0P7

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 800V 3A (Tc) 24W (Tc) Through Hole PG-TO251-3

To learn about the specification of IPU80R2K0P7AKMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPU80R2K0P7AKMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPU80R2K0P7AKMA1.
We are offering IPU80R2K0P7AKMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPU80R2K0P7AKMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPU80R2K0P7
Standard Package	1500
Manufacturer	Infineon Technologies
Series	CoolMOS™ P7
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 940mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	9nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	175pF @ 500V
FET Feature	-
Power Dissipation (Max)	24W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
