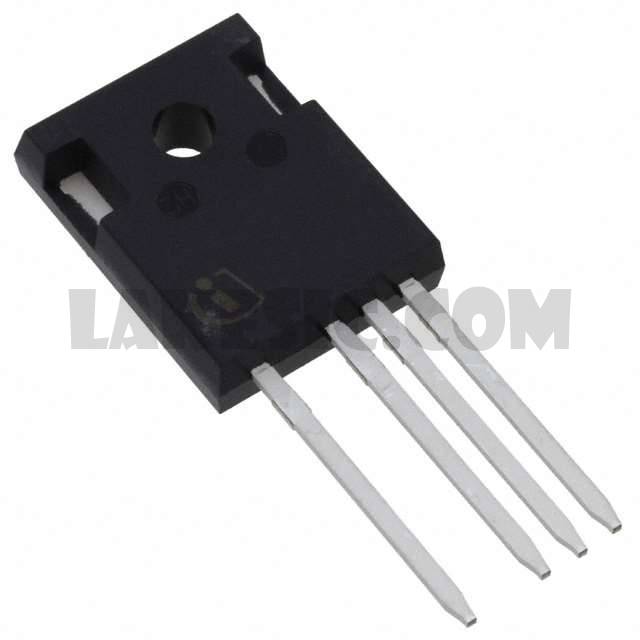

IPZ65R045C7XKSA1

IPZ65R045C7XKSA1

Part NumberIPZ65R045C7XKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 46A TO247-4

DatasheetIPZ65R045C7

Package / CaseTO-247-4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 46A (Tc) 227W (Tc) Through Hole PG-TO247

To learn about the specification of IPZ65R045C7XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPZ65R045C7XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPZ65R045C7XKSA1.
We are offering IPZ65R045C7XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPZ65R045C7XKSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPZ65R045C7
Standard Package	240
Manufacturer	Infineon Technologies
Series	CoolMOS™ C7
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	45mOhm @ 24.9A, 10V
Vgs(th) (Max) @ Id	4V @ 1.25mA
Gate Charge (Qg) (Max) @ Vgs	93nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4340pF @ 400V
FET Feature	-
Power Dissipation (Max)	227W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO247
Package / Case	TO-247-4
