IRF730ASTRLPBF


IRF730ASTRLPBF

Part NumberIRF730ASTRLPBF

Manufacturer

Description

Datasheet

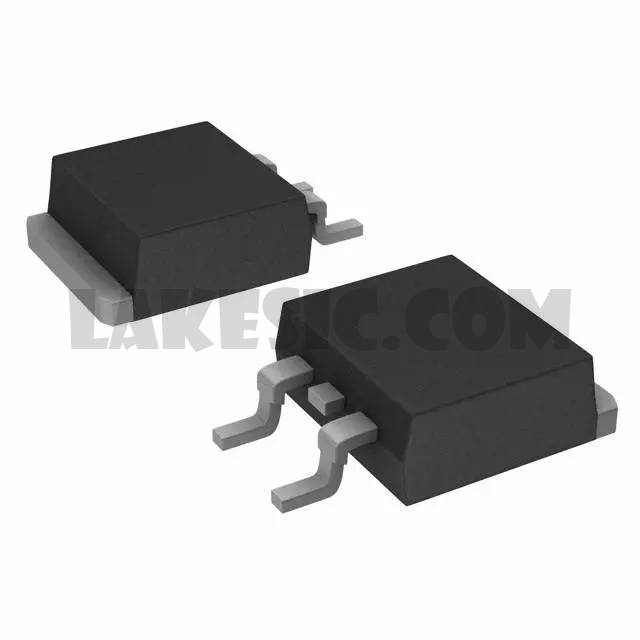

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IRF730ASTRLPBF - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package800
ManufacturerVishay Siliconix
Series-
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)400V
Current - Continuous Drain (Id) @ 25°C5.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1Ohm @ 3.3A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs22nC @ 10V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds600pF @ 25V
FET Feature-
Power Dissipation (Max)74W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
