IRF7530TRPBF

Part NumberIRF7530TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET 2N-CH 20V 5.4A MICRO8

DatasheetIRF7530PbF

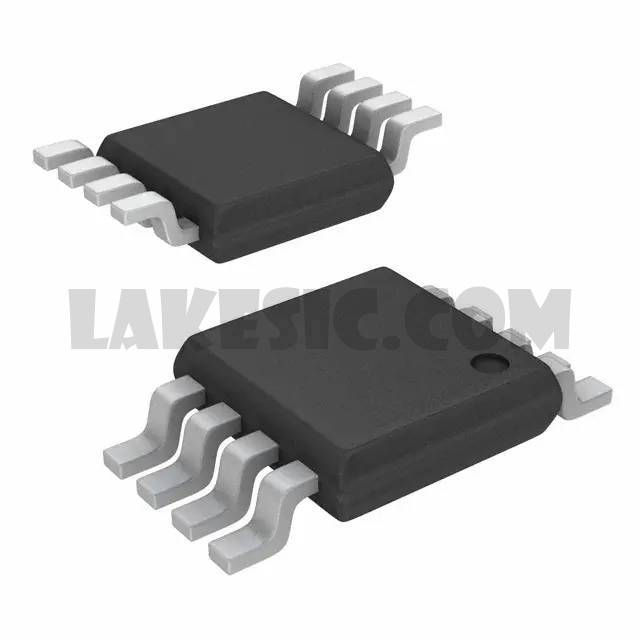

Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 20V 5.4A 1.3W Surface Mount Micro8™

To learn about the specification of IRF7530TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF7530TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF7530TRPBF.
We are offering IRF7530TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF7530TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	IRF7530PbF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	5.4A
Rds On (Max) @ Id, Vgs	30mOhm @ 5.4A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	26nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1310pF @ 15V
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	Micro8™
Base Part Number	IRF7530PBF
