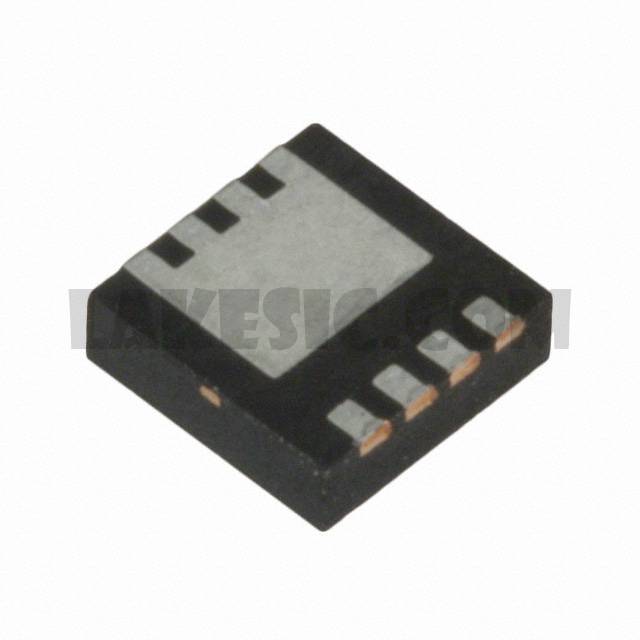

IRFHM830TRPBF

IRFHM830TRPBF

Part NumberIRFHM830TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 30V 21A PQFN

DatasheetIRFHM830PbF

Package / Case8-VQFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 21A (Ta), 40A (Tc) 2.7W (Ta), 37W (Tc) Surface Mount PQFN (3x3)

To learn about the specification of IRFHM830TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFHM830TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFHM830TRPBF.
We are offering IRFHM830TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFHM830TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFHM830PbF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.35V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	31nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2155pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 37W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (3x3)
Package / Case	8-VQFN Exposed Pad
