IRFZ48RSPBF

IRFZ48RSPBF

Part NumberIRFZ48RSPBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 60V 50A D2PAK

DatasheetIRFZ48RS, IRFZ48RL

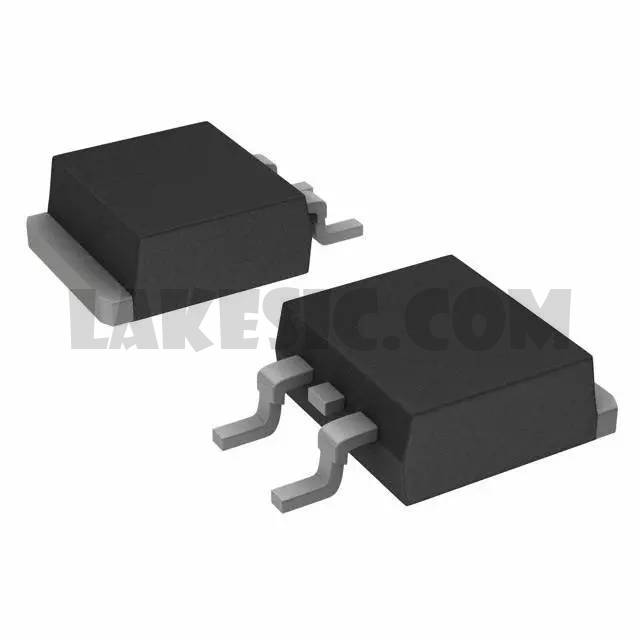

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 50A (Tc) 190W (Tc) Surface Mount TO-263 (D2Pak)

To learn about the specification of IRFZ48RSPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFZ48RSPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFZ48RSPBF.
We are offering IRFZ48RSPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFZ48RSPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFZ48RS, IRFZ48RL
Standard Package	1000
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	18mOhm @ 43A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	110nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2400pF @ 25V
FET Feature	-
Power Dissipation (Max)	190W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D2Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
