IRG4BC40W-SPBF
IRG4BC40W-SPBF

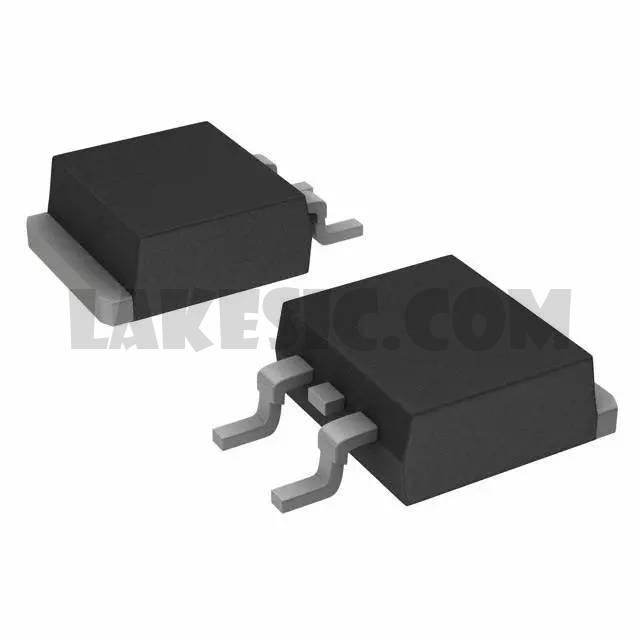

Part Number IRG4BC40W-SPBF Description IGBT 600V 40A 160W D2PAK Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263ABUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 40A 160W Surface Mount D2PAK
To learn about the specification of IRG4BC40W-SPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRG4BC40W-SPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRG4BC40W-SPBF.
We are offering IRG4BC40W-SPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRG4BC40W-SPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IRG4BC40W(S,L)PbF Standard Package 50 Manufacturer Infineon Technologies Series - Packaging Tube Part Status Not For New Designs IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 40A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 20A Power - Max 160W Switching Energy 110µJ (on), 230µJ (off) Input Type Standard Gate Charge 98nC Td (on/off) @ 25°C 27ns/100ns Test Condition 480V, 20A, 10Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Supplier Device Package D2PAK
