IRG4PC30FDPBF
IRG4PC30FDPBF
Part Number IRG4PC30FDPBF
Description IGBT 600V 31A 100W TO247AC

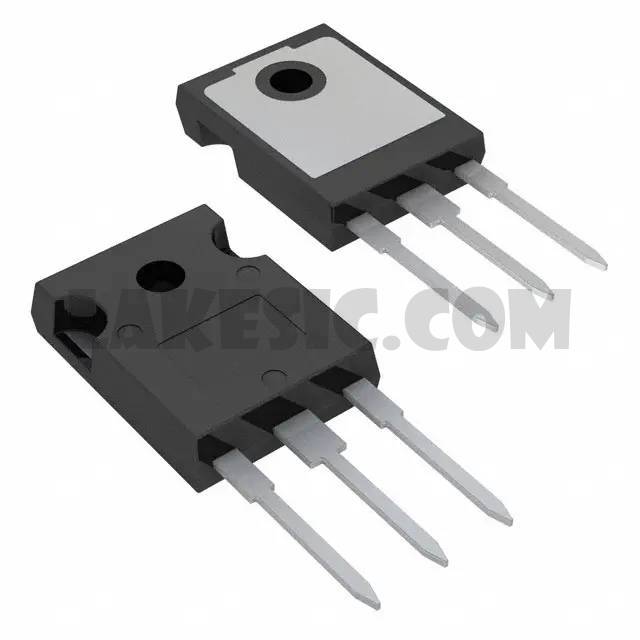

Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT 600V 31A 100W Through Hole TO-247AC
To learn about the specification of IRG4PC30FDPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRG4PC30FDPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRG4PC30FDPBF.
We are offering IRG4PC30FDPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRG4PC30FDPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IRG4PC30FDPbF
Standard Package 25
Manufacturer Infineon Technologies
Series -
Packaging Bulk
Part Status Not For New Designs
IGBT Type -
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 31A
Current - Collector Pulsed (Icm) 120A
Vce(on) (Max) @ Vge, Ic 1.8V @ 15V, 17A
Power - Max 100W
Switching Energy 630µJ (on), 1.39mJ (off)
Input Type Standard
Gate Charge 51nC
Td (on/off) @ 25°C 42ns/230ns
Test Condition 480V, 17A, 23Ohm, 15V
Reverse Recovery Time (trr) 42ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AC
