IRL60HS118

IRL60HS118

Part NumberIRL60HS118

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 60V 18.5A 6PQFN

DatasheetIRL60HS118

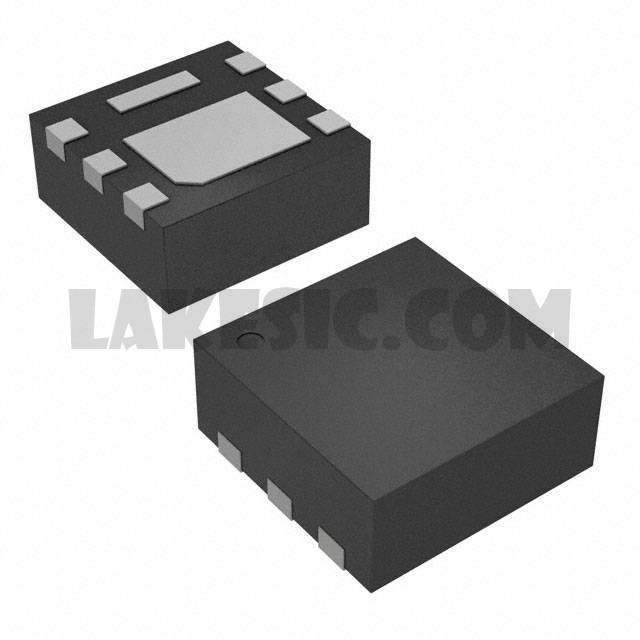

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 18.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2)

To learn about the specification of IRL60HS118, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRL60HS118 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRL60HS118.
We are offering IRL60HS118 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRL60HS118 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRL60HS118
Standard Package	1
Manufacturer	Infineon Technologies
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	18.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	17mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	2.3V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	8nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	660pF @ 25V
FET Feature	-
Power Dissipation (Max)	11.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-VDFN Exposed Pad
