Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ISL9R3060G2_F085
Standard Package	450
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101, Stealth™
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	2.4V @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	45ns
Current - Reverse Leakage @ Vr	100µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

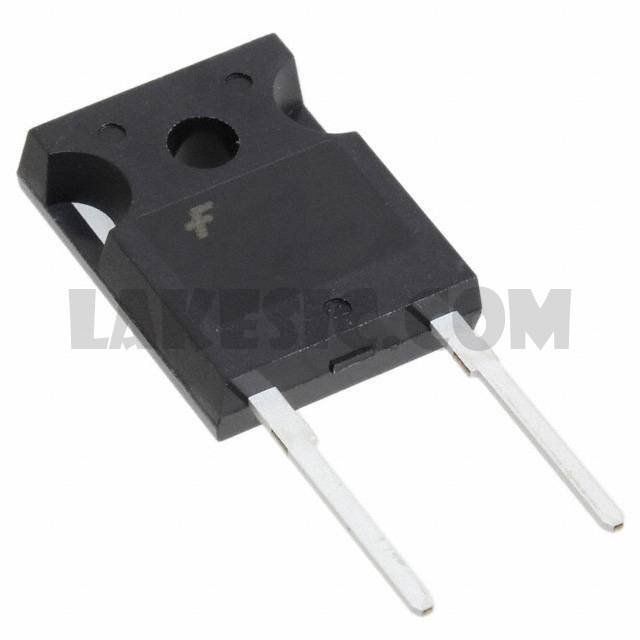

Package / Case	TO-247-2
Supplier Device Package	TO-247-2
Operating Temperature - Junction	-55°C ~ 175°C
