Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	ISL9V5036P3-F085
Standard Package	400
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101, EcoSPARK®
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	390V
Current - Collector (Ic) (Max)	46A
Vce(on) (Max) @ Vge, Ic	1.6V @ 4V, 10A
Power - Max	250W
Switching Energy	-
Input Type	Logic
Gate Charge	32nC
Td (on/off) @ 25°C	-/10.8µs
Test Condition	300V, 1kOhm, 5V
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220-3
Base Part Number	ISL9V5036

STGB20NB41LZT4	STMicroelectronics, IGBT 442V 40A 200W Surface Mount D2PAK, PowerMESH™	View
STGD20N40LZ	STMicroelectronics, IGBT 390V 25A 125W Surface Mount DPAK, Automotive, AEC-Q101, PowerMESH™	View
FGD3325G2-F085	ON Semiconductor, IGBT 250V 41A 150W Surface Mount TO-252, Automotive, AEC-Q101, EcoSPARK®	View
ISL9V2040D3ST	ON Semiconductor, IGBT 430V 10A 130W Surface Mount TO-252AA, EcoSPARK®	View
NGB8204ANT4G	Littelfuse Inc., IGBT 430V 18A 115W Surface Mount D2PAK,	View
STGD20N45LZAG	STMicroelectronics, IGBT 450V 25A 125W Surface Mount DPAK, Automotive, AEC-Q101	View
FGD3440G2-F085	ON Semiconductor, IGBT 400V 26.9A 166W Surface Mount TO-252AA, Automotive, AEC-Q101, EcoSPARK®	View
NGD18N40ACLBT4G	Littelfuse Inc., IGBT 430V 15A 115W Surface Mount DPAK,	View
FGP3040G2-F085	ON Semiconductor, IGBT 400V 41A 150W Through Hole TO-220-3, Automotive, AEC-Q101, EcoSPARK®	View
NGB8207ABNT4G	Littelfuse Inc., IGBT 365V 20A 165W Surface Mount D2PAK,	View
ISL9V3040D3ST	ON Semiconductor, IGBT 430V 21A 150W Surface Mount TO-252AA, EcoSPARK®	View
STGD18N40LZT4	STMicroelectronics, IGBT 420V 25A 125W Surface Mount DPAK, Automotive, AEC-Q101, PowerMESH™	View

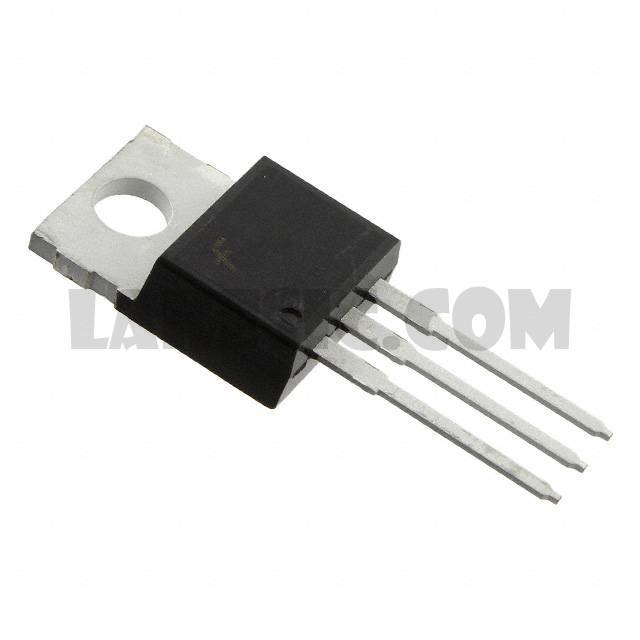

ISL9V5036P3-F085
