Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

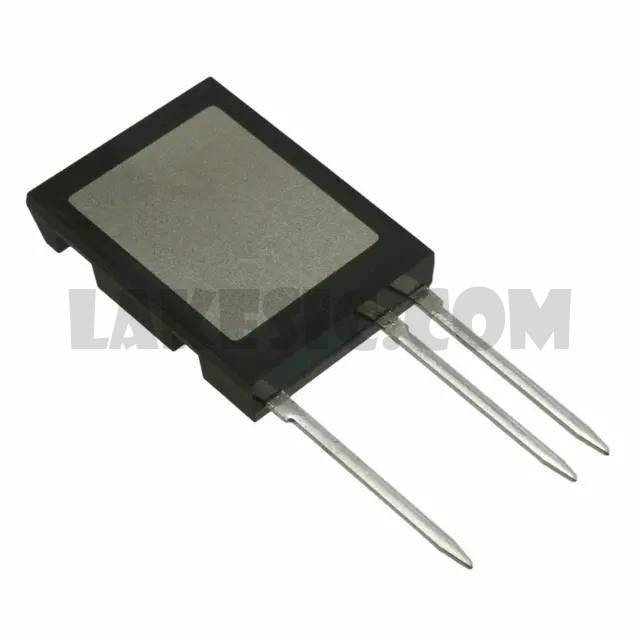

Datasheet	IXBL60N360
Standard Package	25
Manufacturer	IXYS
Series	BIMOSFET™
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	3600V
Current - Collector (Ic) (Max)	92A
Current - Collector Pulsed (Icm)	720A
Vce(on) (Max) @ Vge, Ic	3.4V @ 15V, 60A
Power - Max	417W
Switching Energy	-
Input Type	Standard
Gate Charge	450nC
Td (on/off) @ 25°C	50ns/340ns
Test Condition	960V, 60A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	1.95µs
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	ISOPLUSi5-Pak™
Supplier Device Package	ISOPLUSi5-Pak™
