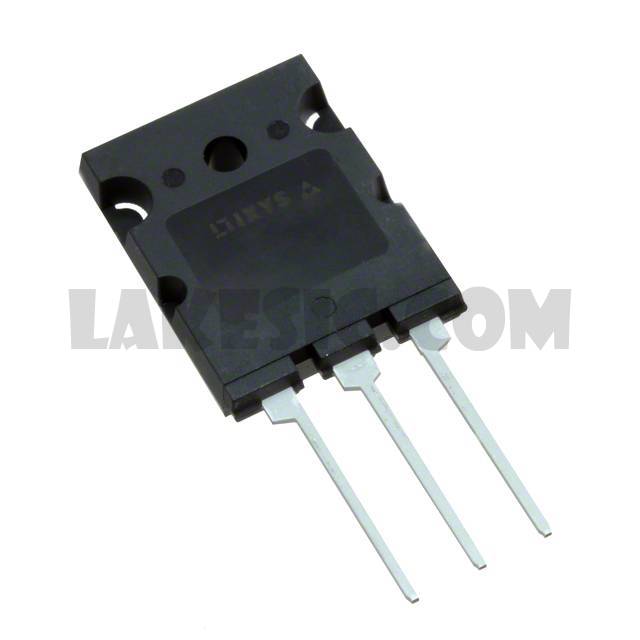

IXFK240N25X3

IXFK240N25X3

Part NumberIXFK240N25X3

ManufacturerIXYS

DescriptionMOSFET N-CH 250V 240A TO264

DatasheetIXFK240N25X3, IXFX240N25X3

Package / CaseTO-264-3, TO-264AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 240A (Tc) 1250W (Tc) Through Hole TO-264

To learn about the specification of IXFK240N25X3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFK240N25X3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFK240N25X3.
We are offering IXFK240N25X3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFK240N25X3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFK240N25X3, IXFX240N25X3
Standard Package	25
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5mOhm @ 120A, 10V
Vgs(th) (Max) @ Id	4.5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	345nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	23800pF @ 25V
FET Feature	-
Power Dissipation (Max)	1250W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-264
Package / Case	TO-264-3, TO-264AA
