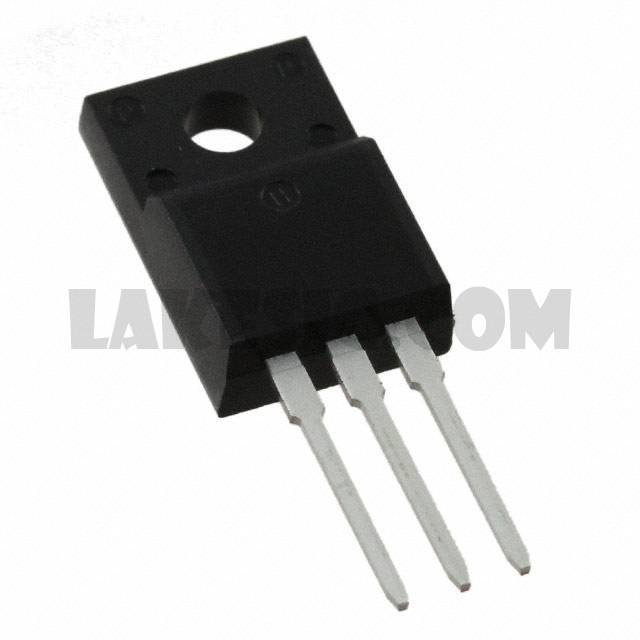

IXFP60N25X3M

IXFP60N25X3M

Part NumberIXFP60N25X3M

ManufacturerIXYS

DescriptionMOSFET N-CH 250V 60A TO220AB

DatasheetIXFP60N25X3M

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 60A (Tc) 36W (Tc) Through Hole TO-220AB (IXFP)

To learn about the specification of IXFP60N25X3M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFP60N25X3M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFP60N25X3M.
We are offering IXFP60N25X3M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFP60N25X3M - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFP60N25X3M
Standard Package	50
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	23mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	50nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3610pF @ 25V
FET Feature	-
Power Dissipation (Max)	36W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB (IXFP)
Package / Case	TO-220-3
