IXFP72N30X3M

IXFP72N30X3M

Part NumberIXFP72N30X3M

ManufacturerIXYS

Description300V/72A ULTRA JUNCTION X3-CLASS

DatasheetIXFP72N30X3M

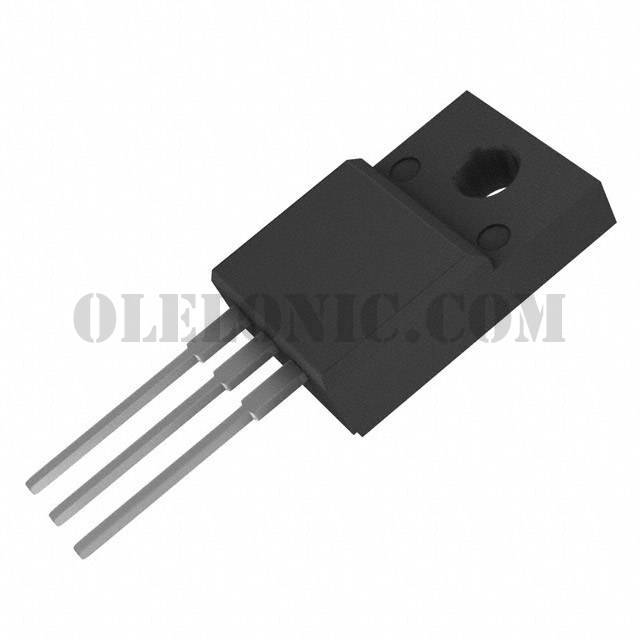

Package / CaseTO-220-3 Full Pack, Isolated Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 300V 72A (Tc) 36W (Tc) Through Hole TO-220 Isolated Tab

To learn about the specification of IXFP72N30X3M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFP72N30X3M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFP72N30X3M.
We are offering IXFP72N30X3M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFP72N30X3M - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFP72N30X3M
Standard Package	50
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	300V
Current - Continuous Drain (Id) @ 25°C	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	19mOhm @ 36A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	82nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5.4nF @ 25V
FET Feature	-
Power Dissipation (Max)	36W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Isolated Tab
Package / Case	TO-220-3 Full Pack, Isolated Tab
