IXYA20N120C3HV

Part NumberIXYA20N120C3HV

ManufacturerIXYS

DescriptionIGBT

DatasheetIXY(P,H)20N120C3

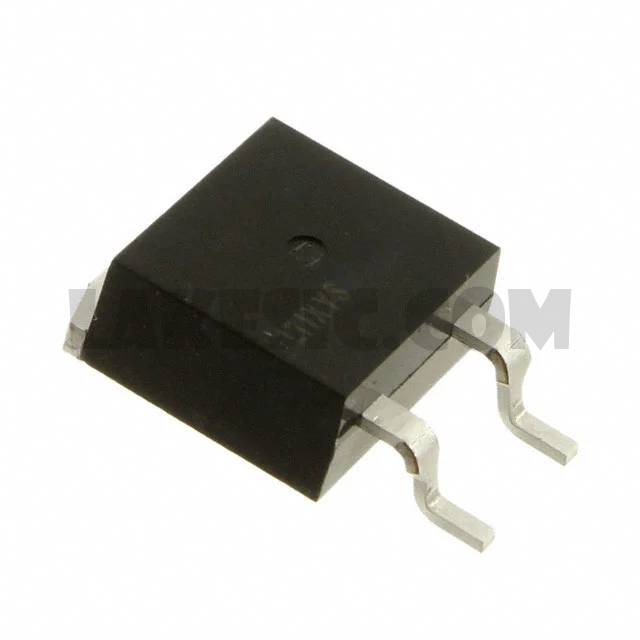

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 1200V 40A 278W Surface Mount TO-263HV

To learn about the specification of IXYA20N120C3HV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYA20N120C3HV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYA20N120C3HV.
We are offering IXYA20N120C3HV for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXYA20N120C3HV - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

IXY(P,H)20N120C3

Standard Package

Manufacturer

IXYS

Series

XPT™, GenX3™

Part Status

Active

IGBT Type

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

40A

Current - Collector Pulsed (Icm)

96A

Vce(on) (Max) @ Vge, Ic

3.4V @ 15V, 20A

Power - Max

278W

Switching Energy

1.3mJ (on), 1mJ (off)

Input Type

Standard

Gate Charge

53nC

Td (on/off) @ 25°C

20ns/90ns

Test Condition

600V, 20A, 10Ohm, 15V

Reverse Recovery Time (trr)

29ns

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package

TO-263HV
