IXYA20N65C3D1

Part NumberIXYA20N65C3D1

ManufacturerIXYS

DescriptionIGBT

DatasheetIXY(P,A)20N65C3D1

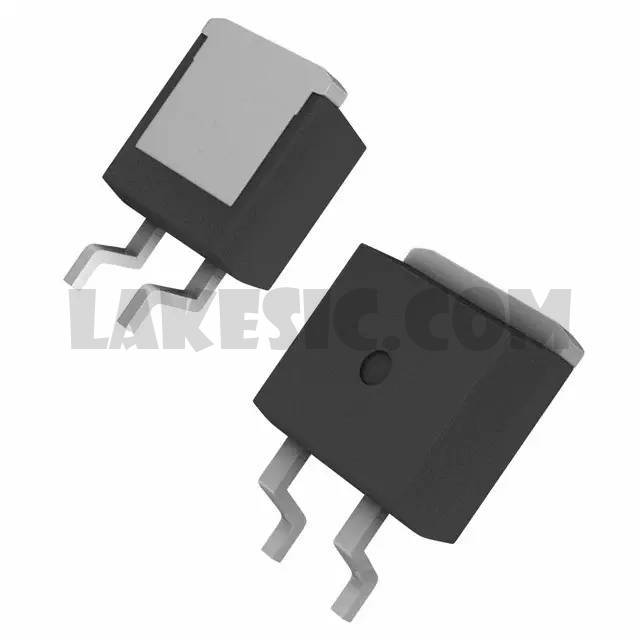

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 650V 50A 200W Surface Mount TO-263AA

To learn about the specification of IXYA20N65C3D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYA20N65C3D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYA20N65C3D1.
We are offering IXYA20N65C3D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXYA20N65C3D1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

IXY(P,A)20N65C3D1

Standard Package

Manufacturer

IXYS

Series

XPT™, GenX3™

Part Status

Active

IGBT Type

Voltage - Collector Emitter Breakdown (Max)

650V

Current - Collector (Ic) (Max)

50A

Current - Collector Pulsed (Icm)

105A

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 20A

Power - Max

200W

Switching Energy

430µJ (on), 650µJ (off)

Input Type

Standard

Gate Charge

30nC

Td (on/off) @ 25°C

19ns/80ns

Test Condition

400V, 20A, 20Ohm, 15V

Reverse Recovery Time (trr)

34ns

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package

TO-263AA
