IXYA8N90C3D1

Part NumberIXYA8N90C3D1

ManufacturerIXYS

DescriptionIGBT 900V 20A 125W C3 TO-263AA

Datasheet900V XPT? IGBTs Brief

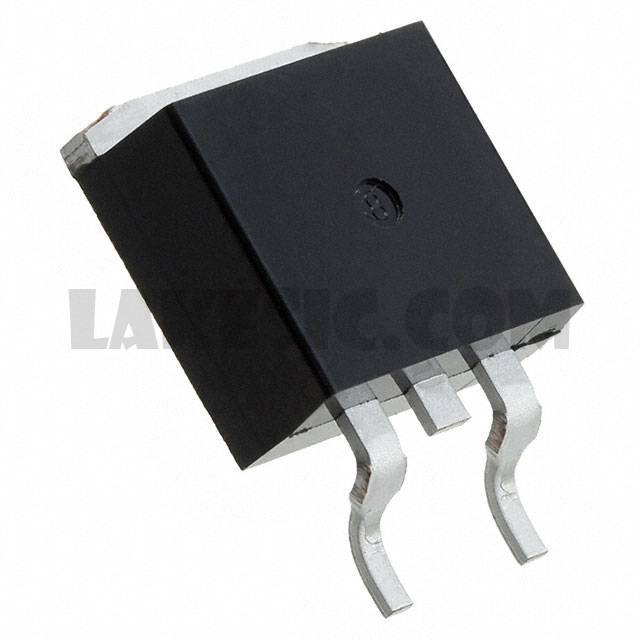

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 900V 20A 125W Surface Mount TO-263AA

To learn about the specification of IXYA8N90C3D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYA8N90C3D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYA8N90C3D1.
We are offering IXYA8N90C3D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXYA8N90C3D1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

900V XPT? IGBTs Brief

Standard Package

Manufacturer

IXYS

Series

GenX3™, XPT™

Packaging

Tube

Part Status

Active

IGBT Type

Voltage - Collector Emitter Breakdown (Max)

900V

Current - Collector (Ic) (Max)

20A

Current - Collector Pulsed (Icm)

48A

Vce(on) (Max) @ Vge, Ic

2.5V @ 15V, 8A

Power - Max

125W

Switching Energy

460µJ (on), 180µJ (off)

Input Type

Standard

Gate Charge

13.3nC

Td (on/off) @ 25°C

16ns/40ns

Test Condition

450V, 8A, 30Ohm, 15V

Reverse Recovery Time (trr)

114ns

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package

TO-263AA
