IXYX40N250CHV
IXYX40N250CHV

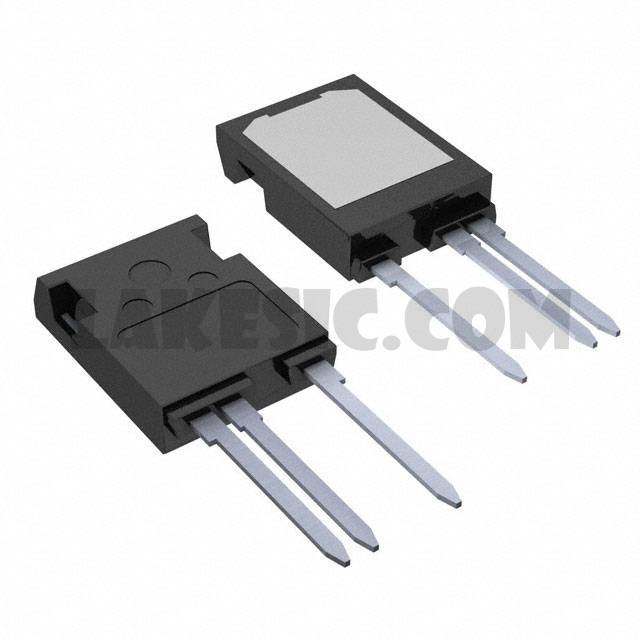

Part Number IXYX40N250CHV Manufacturer IXYS Description IGBT 2.5KV 70A TO247HV Package / Case TO-247-3 VariantUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 2500V 70A 1500W Through Hole TO-247PLUS-HV
To learn about the specification of IXYX40N250CHV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYX40N250CHV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYX40N250CHV.
We are offering IXYX40N250CHV for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYX40N250CHV - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYX40N250CHV Standard Package 30 Manufacturer IXYS Series XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 2500V Current - Collector (Ic) (Max) 70A Current - Collector Pulsed (Icm) 380A Vce(on) (Max) @ Vge, Ic 4V @ 15V, 40A Power - Max 1500W Switching Energy 11.7mJ (on), 6.9mJ (off) Input Type Standard Gate Charge 270nC Td (on/off) @ 25°C 21ns/200ns Test Condition 1250V, 40A, 1Ohm, 15V Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Variant Supplier Device Package TO-247PLUS-HV
