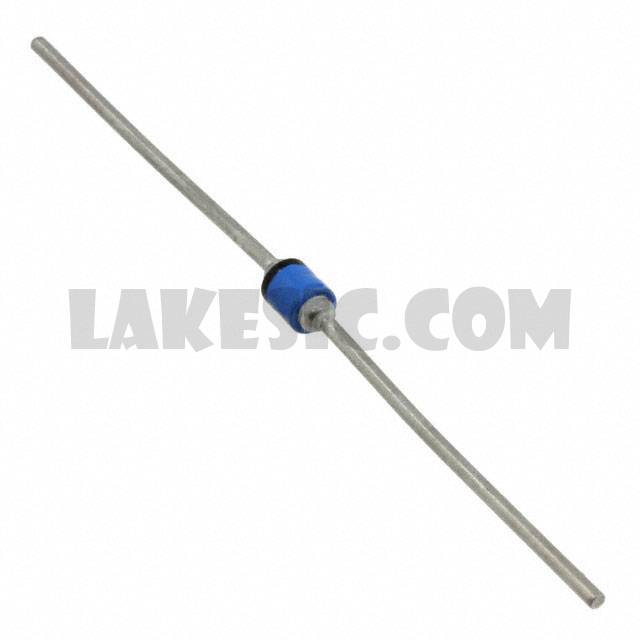

JAN1N5550

JAN1N5550

Part NumberJAN1N5550

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 3A AXIAL

Datasheet1N5550-54

Package / CaseB, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 3A Through Hole

To learn about the specification of JAN1N5550, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N5550 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N5550.
We are offering JAN1N5550 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N5550 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5550-54
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/420
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 9A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	1µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	B, Axial
Operating Temperature - Junction	-65°C ~ 175°C
